61 31... Remount operating unit of the additional seat function (screwed version)

Necessary preliminary tasks:

• REMOVE OPERATING UNIT OF ADDITIONAL SEAT FUNCTION

Removal:

Release all screws by means of screwdriver (1) on the operating unit (2).

Fig 1: Removing Operating Unit Screws Using Screwdriver

Courtesy of BMW OF NORTH AMERICA, INC.

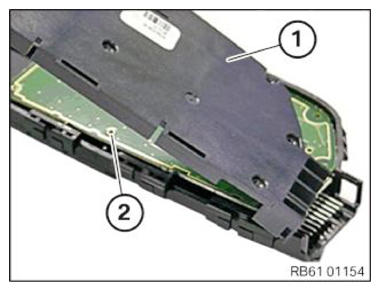

Remove the rear panel (1) and feed out the printed circuit board (2).

Fig 2: Identifying Rear Panel And Printed Circuit Board

Courtesy of BMW OF NORTH AMERICA, INC.

Take out the pressure pin (1) from the operating unit (2).

Fig 3: Disconnecting Pressure Pin From Operating Unit

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip button (2) with the help of screwdriver (1) and remove.

Fig 4: Removing Button Using Screwdriver

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Add the button (1) to the operating unit (2) and lock using pressure.

Fig 5: Pressing Operating Unit Button

Courtesy of BMW OF NORTH AMERICA, INC.

Add pressure pin (1) to the operating unit (2).

Fig 6: Connecting Pressure Pin To Operating Unit

Courtesy of BMW OF NORTH AMERICA, INC.

Add the printed circuit board (2) and then the rear panel (2) to the operating unit.

Fig 7: Identifying Printed Circuit Board And Rear Panel

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten all screws on the operating unit (2) with the help of screwdriver (1).

Fig 8: Tightening Operating Unit Screws Using Screwdriver

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

• REMOVE OPERATING UNIT OF ADDITIONAL SEAT FUNCTION
