61 31 204 Replacing operating unit for seat adjustment

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2018 BMW M6, 2018 BMW 650i xDrive, 2018 BMW 650i, 2018 BMW 640i xDrive, and 2018 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on protection against electrostatic discharge (ESD PROTECTION) .

Necessary preliminary tasks:

Remove COVER FROM FRONT SEAT

Unfasten plug connection (1) and disconnect.

Release latch mechanism (2).

Remove operating unit (3) in direction of arrow.

Fig 1: Removing Operating Unit

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

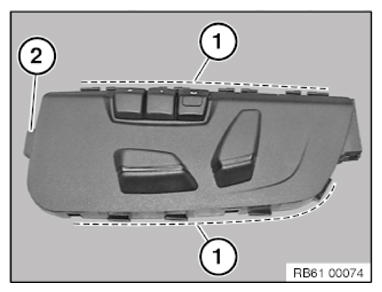

Catches (1) and (2) on the operating unit must not be damaged or missing.

Fig 2: Identifying Operating Unit Catches

Courtesy of BMW OF NORTH AMERICA, INC.
