61 31 336 Removing and installing/replacing trim for gear selector switch

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2018 BMW M6, 2018 BMW 650i xDrive, 2018 BMW 650i, 2018 BMW 640i xDrive, and 2018 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Disconnect BATTERY EARTH LEAD
Remove center console cover. See 51 16 160 REMOVING AND INSTALLING/REPLACING CENTER CONSOLE COVER .

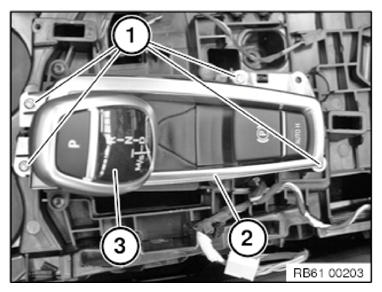

Release screws (1).

Slip out cover for gear selector switch (2) via selector lever (3).

Fig 1: Identifying Gear Selector Switch, Selector Lever, Screws

Courtesy of BMW OF NORTH AMERICA, INC.

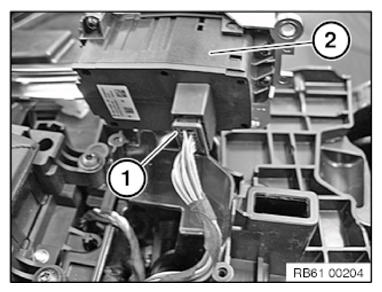

Unlock and disconnect plug connection (1) from switch for electromechanical parking brake (2).

Replacement

Modify SWITCH FOR ELECTROMECHANICAL PARKING BRAKE (2).

Fig 2: Identifying Electromechanical Parking Brake Switch With Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.
