61 35 146 Removing and installing/replacing Convertible top module

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2018 BMW M6, 2018 BMW 650i xDrive, 2018 BMW 650i, 2018 BMW 640i xDrive, and 2018 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DISCHARGE (ESD PROTECTION) .

Necessary preliminary tasks:

Remove side trim panel at rear right. See 51 43 002 REMOVING AND INSTALLING REAR LEFT OR RIGHT SIDE TRIM PANEL .

Unlock plug connections (1) and disconnect.

Release nuts (2) and remove module (3).

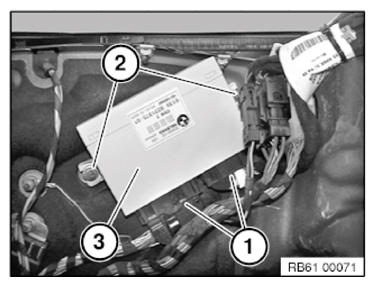

Fig 1: Identifying Module Plug Connections And Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out PROGRAMMING/ENCODING
Teach-in soft top

Teach-in process:

Close soft top.
Only on vehicles up to version 09/2011 Briefly release closing button (< 5 seconds).
Operate closing button for 30 seconds (until LED flashes - LED flashes to indicate that the teach-in procedure is complete).
Release closing button.
