51 16 000 Removing and refitting/replacing mirror on left or right front door (to 07/13)

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove TWEETER

IMPORTANT: Risk of damage!
Secure mirror against falling down.

Disconnect plug connection (1).

Remove cover (4), slightly fold seal (2) aside and release screws (3).

Tightening torque 51 16 1AZ .

Installation note:

Rubber grommet for plug connection (1) must be correctly seated on door.

Seal (2) must be correctly seated on door trim panel and door.

Fig 1: Identifying Mirror, Seal And Plug Connection

G09925937

Courtesy of BMW OF NORTH AMERICA, INC.

Remove mirror (1) outwards.

Installation note:

Run a function check.

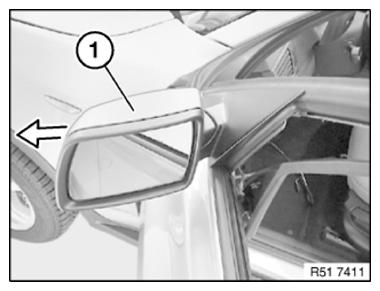

Fig 2: Removing Mirror

G09925938

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Change MIRROR GLASS or replace if necessary
Modify exterior mirror housing . See 51 16 040 REMOVING AND INSTALLING/REPLACING HOUSING ON LEFT OR RIGHT EXTERIOR MIRROR or 51 16 040 REMOVING AND INSTALLING/REPLACING HOUSING ON LEFT OR RIGHT EXTERIOR MIRROR or replace if necessary
