51 21 300 Removing and installing or replacing window cavity cover strip on outside of left or right front door
WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Special tools required:
IMPORTANT:
Observe PROCEDURE for using special tool 00 9 324
.
The "INSTRUCTIONS ON FITTING WINDOW GUIDE SEALS " serve as the basis for this repair instruction and must be observed without fail.
The "INSTRUCTIONS ON FITTING WINDOW GUIDE SEALS " serve as the basis for this repair instruction and must be observed without fail.
Necessary preliminary tasks:
- Remove mirror on front door . See 51 16 000 REMOVING AND REFITTING/REPLACING MIRROR ON LEFT OR RIGHT FRONT DOOR (TO 07/13) or 51 16 001 REMOVING AND REFITTING (REPLACING) MIRROR ON LEFT OR RIGHT FRONT DOOR (07/13 ON)
IMPORTANT:

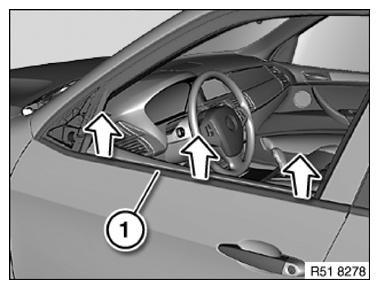

If reusing the existing window cavity cover strip (1), make sure it is not bent.
Lever out weather strip (1) with special tool 00 9 324 (starting at B-pillar).
Installation note:
Moisten weather strip (1) prior to installation with APPROVED LUBRICANT .
