51 49 080 Removing and installing/replacing cover for loading sill (on rear lid lower section)

WARNING: This page is about a different car, the 2003 BMW X5 and 2002 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Remove rear reflector (in rear lid lower section), refer to 63 14 120 REMOVING AND INSTALLING/REPLACING REAR REFLECTOR (ON REAR LID LOWER SECTION) .

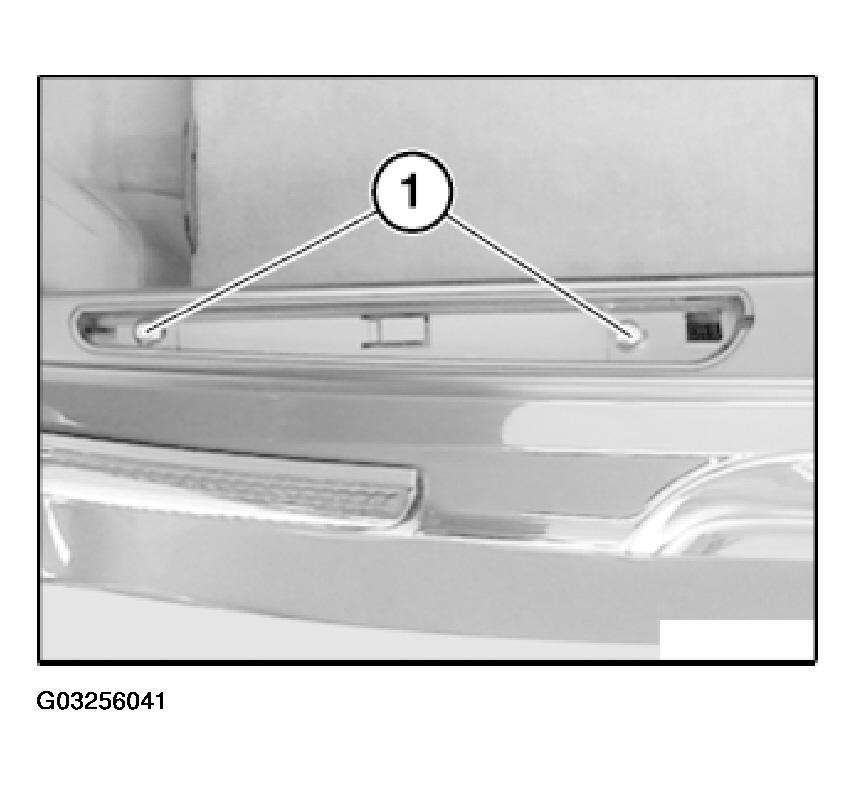

Release left/right screws (1).

Fig 1: Releasing Rear Reflector Cover Screws

Courtesy of BMW OF NORTH AMERICA, INC.

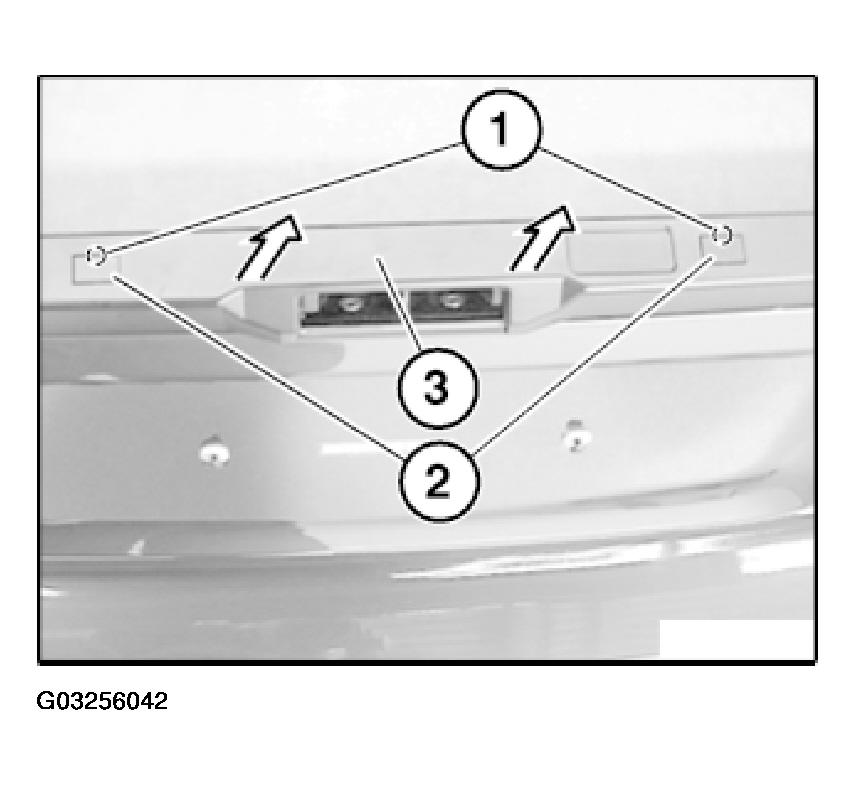

Using a small screwdriver, lever out covers (2) by means of chamfers (1) and release screw underneath.

Pull off cover (3) for loading sill.

Fig 2: Removing Loading Sill Cover Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

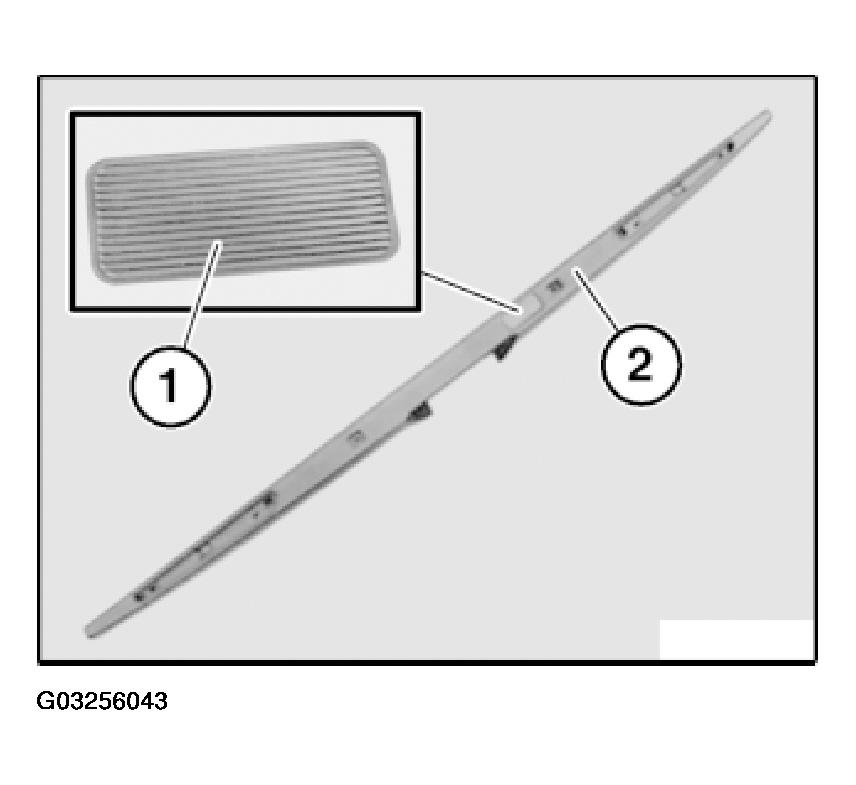

If necessary, replace faulty cover (1) for button on cover (2) for loading sill.

Fig 3: Replacing Faulty Loading Sill Cover Button

Courtesy of BMW OF NORTH AMERICA, INC.
