63 14 120 Removing and installing/replacing rear reflector (on rear lid lower section)

WARNING: This page is about a different car, the 2003 BMW X5 and 2002 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Open rear lid upper section.

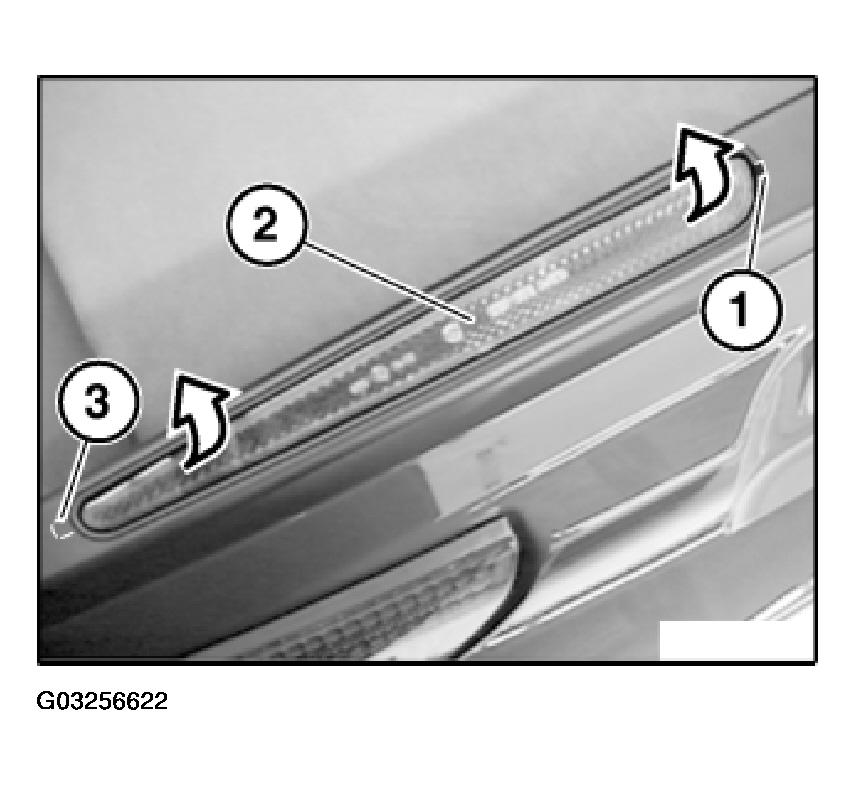

Lever out reflector (2) at recess (1) and remove from guide (3) towards middle of car.

Fig 1: Removing Rear Lid Reflector

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

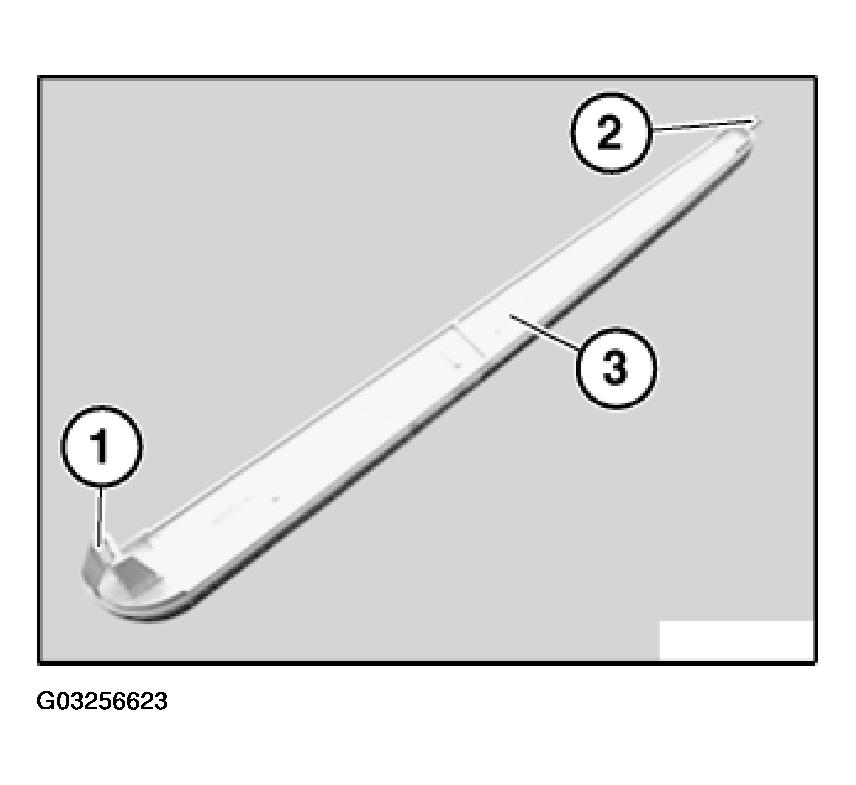

Spring (1) and guide (2) on reflector (3) must not be damaged.

Fig 2: Identifying Reflector Spring & Guide

Courtesy of BMW OF NORTH AMERICA, INC.
