31 53 040 Removing and installing/replacing right output shaft bearing block (N63)
WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary work:
- REMOVE right output shaft.

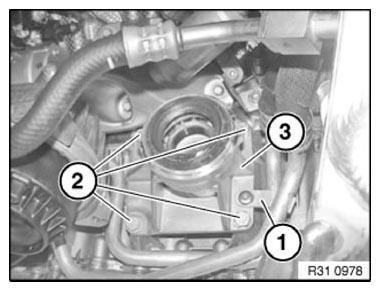

Release holder (1) from bearing support.
Unfasten screws (2).
Tightening torque 31 60 1AZ .
Remove bearing block (3) from oil sump.
Installation note:
Replace O-RING .
Replace SHAFT SEAL .
