31 51 020 Replacing shaft seal for right output shaft

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

31 5 130

Necessary preliminary tasks:

Remove RIGHT OUTPUT SHAFT

Lever radial shaft seal (1) with an open-end spanner (2) out of bearing support (3).

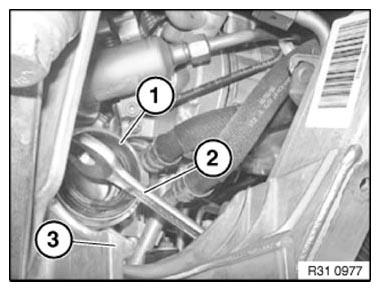

Fig 1: Removing Radial Shaft Seal Out Of Bearing Support Using Open-End Spanner

Courtesy of BMW OF NORTH AMERICA, INC.

Install radial shaft seal

NOTE: The installation protective ring (1) serves to protect the sealing lips on shaft seal (2) when the output shaft is being installed.

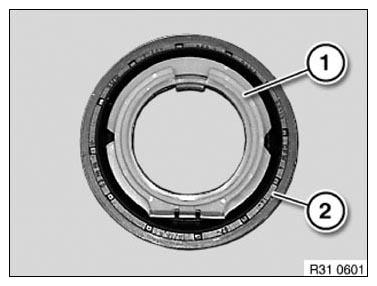

Fig 2: Identifying Protective Ring For Sealing Lips Of Radial Shaft Seal

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Drive in shaft seal with special tool 31 5 130 as far as it will go.

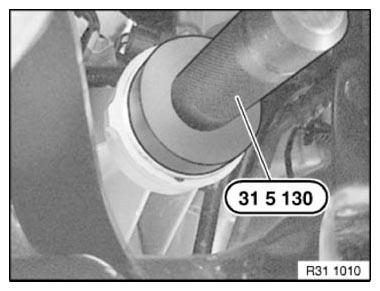

Fig 3: Driving-In Shaft Seal Using Special Tool (31 5 130)

Courtesy of BMW OF NORTH AMERICA, INC.
