54 12 138 Removing and installing/replacing rain gutter for glass slide/tilt sunroof
WARNING: This page is about a different car, the 2011 BMW X6 and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks
- REMOVE complete glass slide/tilt sunroof (frame).

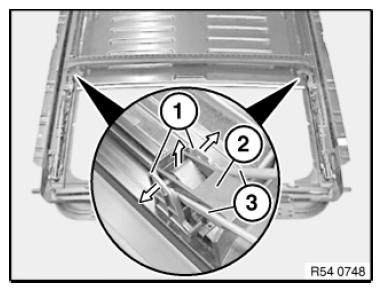

Carefully unlock holders (1) with screwdriver (3) on left/right and unclamp setting lever (2) of rain channel towards top.
Remove rain channel.
Installation note:
Make sure setting lever (2) is correctly engaged in holders (1).
Carry out function check.
