54 12 115 Removing and installing the glass slide/tilt sunroof
WARNING: This page is about a different car, the 2011 BMW X6 and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks
- Remove GAITER on left and right

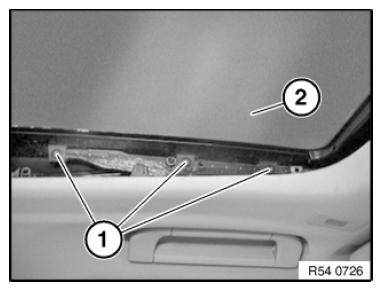

Release left and right screws (1).
Remove glass slide sunroof lid (2) towards top.
Installation:
Replace screws (1).
Insert screws (1) but do not tighten down yet.
ADJUST and INITIALIZE slide sunroof lid..
