54 12 015 Replacing the left and right gaiters for the glass slide/tilt sunroof

WARNING: This page is about a different car, the 2011 BMW X6 and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

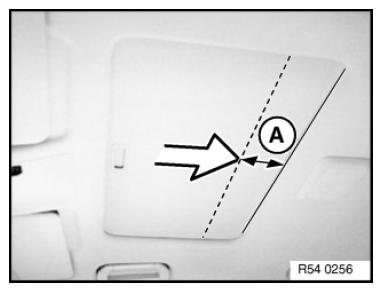

Move glass slide/tilt sunroof panel into "raise position".

Slowly slide headlining (floating headlining) towards rear until noticeable stop is reached.

E65, E66: A = approx. 60 mm

E60, E61: A = 0 mm

Fig 1: Moving Glass Slide/Tilt Sunroof Panel Into Raise Position

Courtesy of BMW OF NORTH AMERICA, INC.

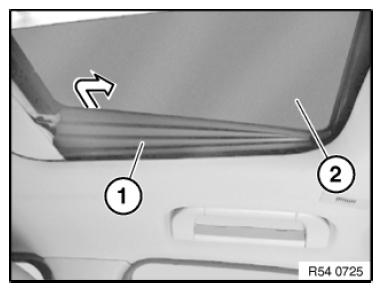

Starting from the back, pull gaiter (1) out of the glass slide/tilt sunroof panel (2).

Fig 2: Pulling Gaiter Out Of Glass Slide/Tilt Sunroof Panel

Courtesy of BMW OF NORTH AMERICA, INC.

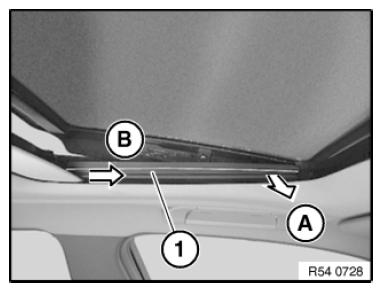

Remove gaiter (1) as follows:

Unclamp at front
Slide-forwards and remove

Fig 3: Removing Gaiter
Courtesy of BMW OF NORTH AMERICA, INC.

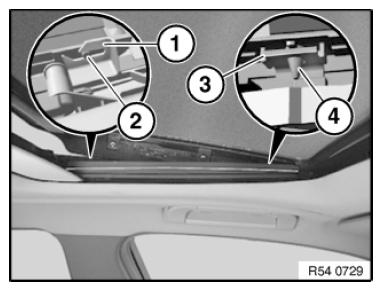

Installation note:

clamp. (4) and guide pin. (2) must not be damaged.

Slide guide pin. (2) into holder. (1). clamp. (4) must engage in holder. (3).

Fig 4: Identifying Guide Pin, Holder, Clamp And Holder

Courtesy of BMW OF NORTH AMERICA, INC.
