17 11 530 Removing and installing cassette (condenser for air conditioner)

Remove radiator. Refer to 17 11 000 REMOVING AND INSTALLING RADIATOR (M62, M54 AND M57) .

Draw off refrigerant from A/C system. Refer to 64 50 009 DRAWING OFF, EVACUATING AND FILLING A/C SYSTEM .

Release screw (1).

Release screws (2).

Disconnect A/C system lines from condenser.

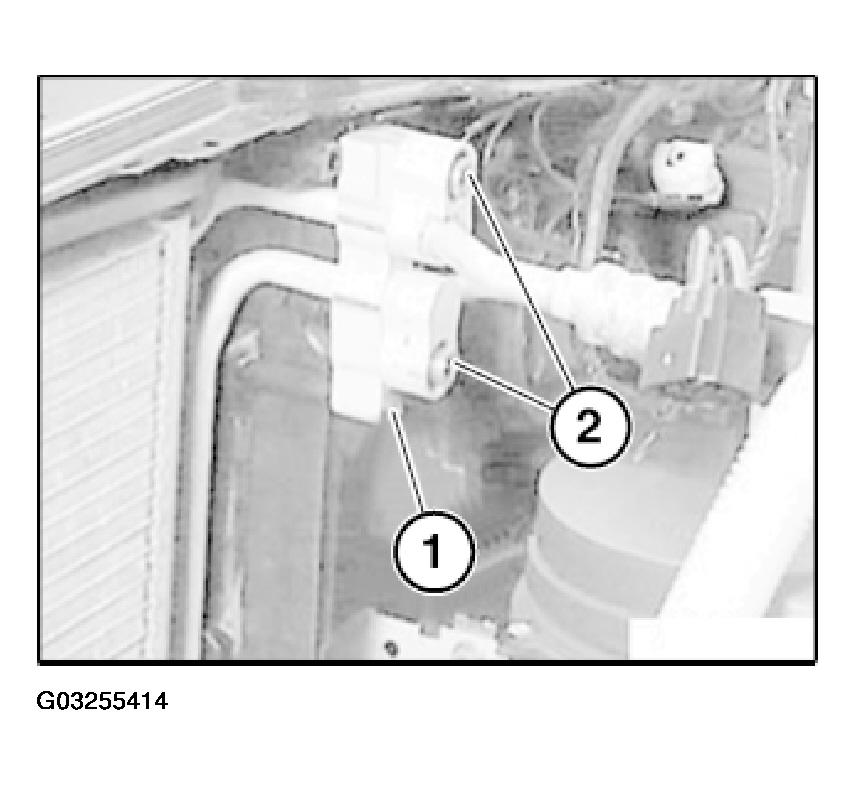

Fig 1: Disconnecting A/C System Lines From Condenser

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Replace sealing rings.

Evacuate and fill A/C system.

Recycling  Hydraulic fluid emerges when hydraulic lines are disconnected. Catch and dispose of emerging hydraulic fluid. Observe country-specific waste-disposal regulations.

Disconnect fast-release couplings on hydraulic lines.

Installation:  Bleed power steering.

Release screw (1).

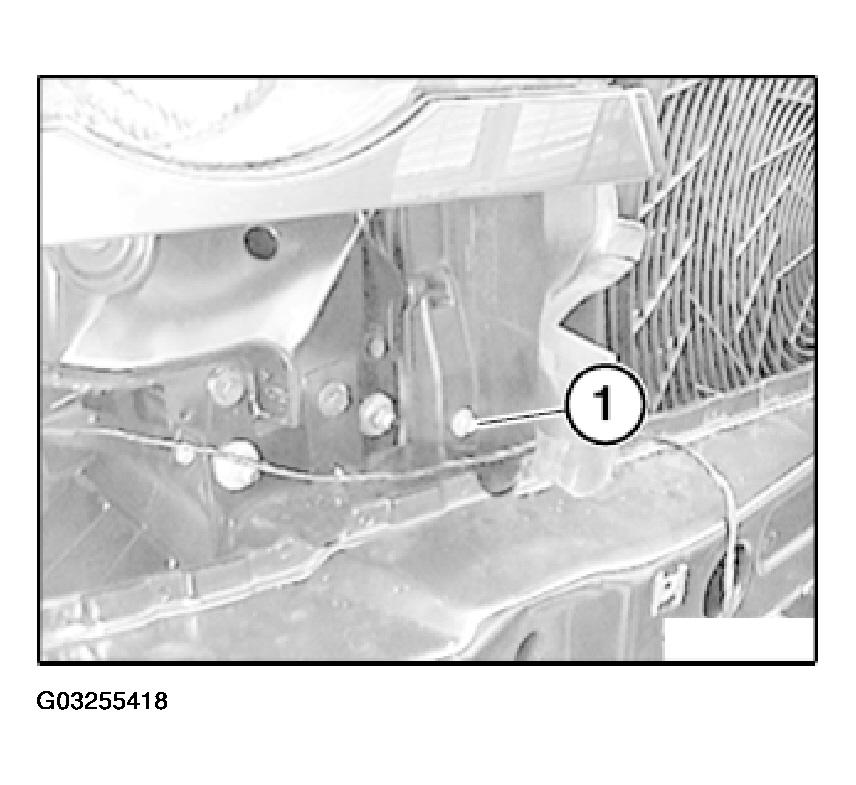

Fig 2: Removing A/C Condenser

Courtesy of BMW OF NORTH AMERICA, INC.

Remove A/C condenser.

Remove cooler for steering hydraulics.

Installation:

Check sealing strip (1) between condenser and cooler for steering hydraulics for correct seating.

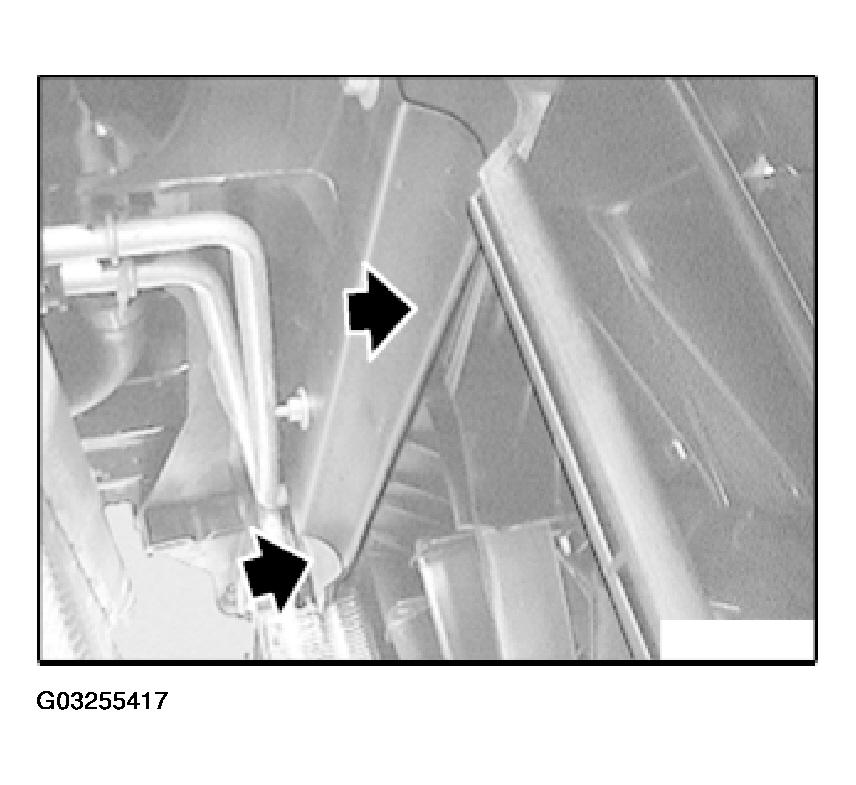

Fig 3: Checking Sealing Strip Between Condenser And Cooler

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Insert condenser into semicircular holders on left and right.

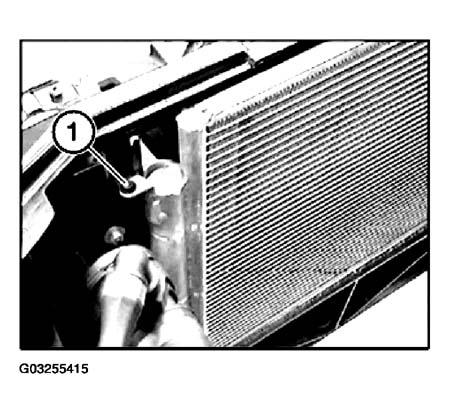

Fig 4: Inserting Condenser Into Semicircular Holders

Courtesy of BMW OF NORTH AMERICA, INC.

Remove front bumper.

Release screws (1) on left and right.

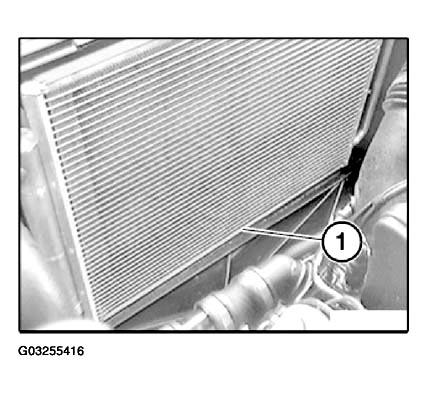

Fig 5: Removing Cassette Mounting Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Remove cassette towards top.

Installation:

Install cassette on left and right into holders.
