17 11 000 Removing and installing radiator (M62, M54 and M57)

WARNING: This page is about a different car, the 2003 BMW X5 and 2002 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Danger of scalding!
Only perform these tasks on an engine that has cooled down.

Recycling Catch and dispose of drained coolant. Observe country-specific waste-disposal regulations.

NOTE: Follow instructions for working on cooling system.
Unscrew drain plug at bottom of radiator.
Drain coolant from radiator only.
Remove fan cowl.

M62 only:

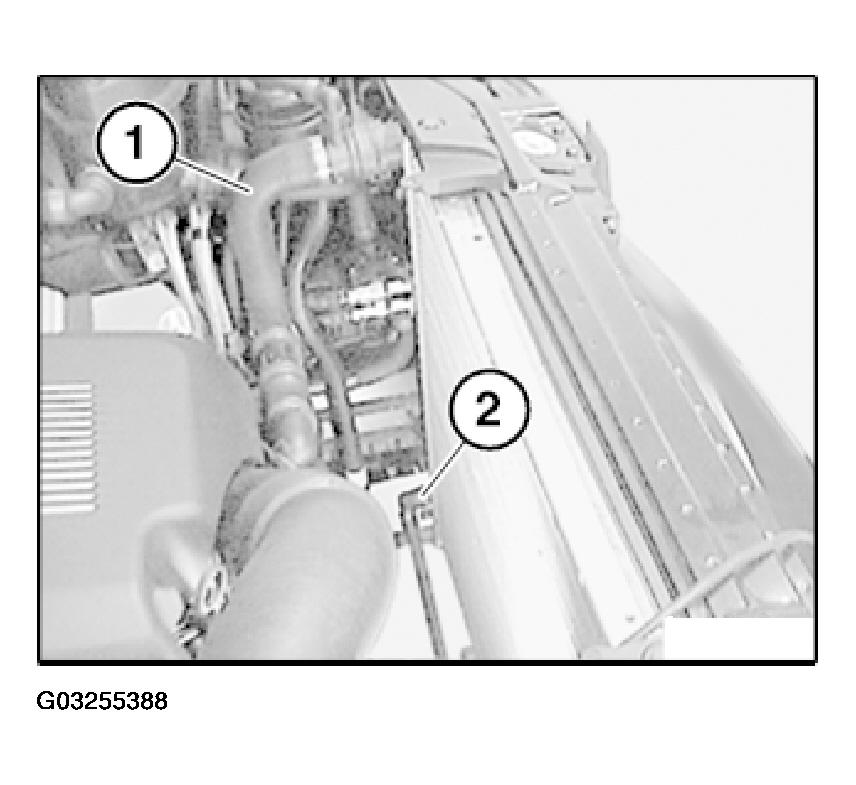

Detach water hose (1) from radiator at top.

Detach water hose (2) from radiator at bottom.

Fig 1: Removing Water Hoses From Radiator

Courtesy of BMW OF NORTH AMERICA, INC.

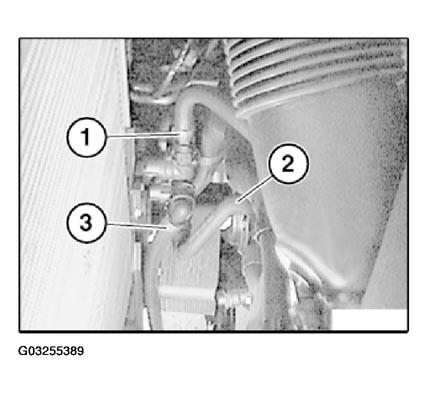

Detach water hoses (1, 2 and 3) from mounting plate.

Fig 2: Detaching Water Hoses From Mounting Plate

Courtesy of BMW OF NORTH AMERICA, INC.

M62, M54 And M57 With Automatic Transmission:

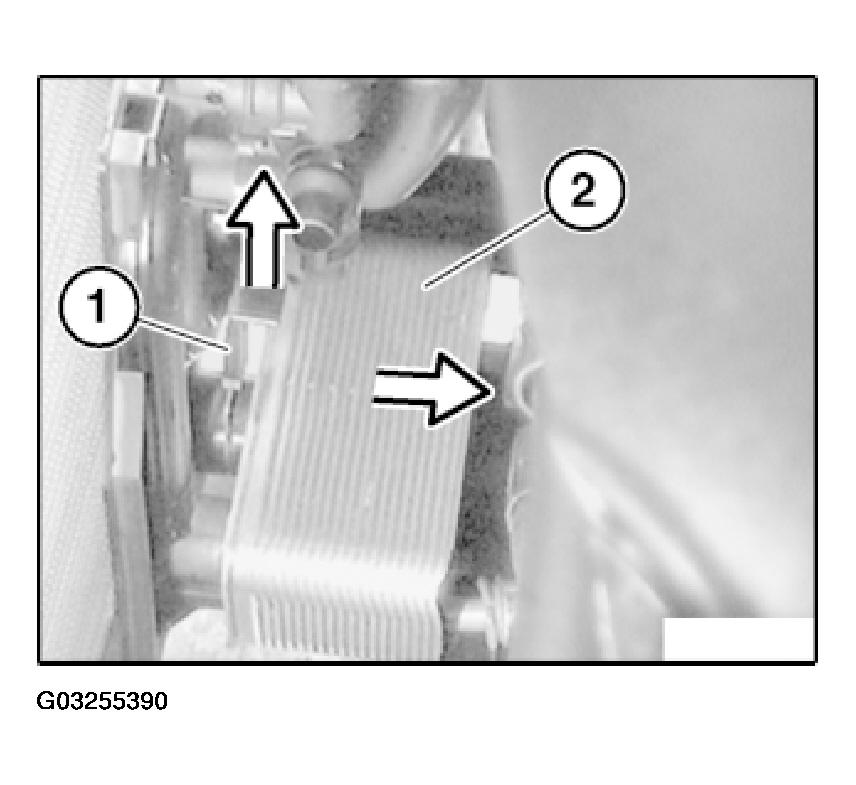

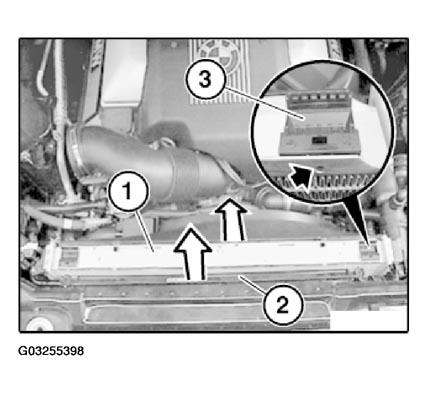

Pull lock (1) upwards.

Remove heat exchanger (2) for automatic transmission fluid from mounting plate on radiator.

Fig 3: Removing Automatic Transmission Heat Exchanger

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Oil lines remain connected to heat exchanger.

Installation:

Press lock (1) downwards
Push on heat exchanger

The lock must snap audibly into place when the heat exchanger is forced on.

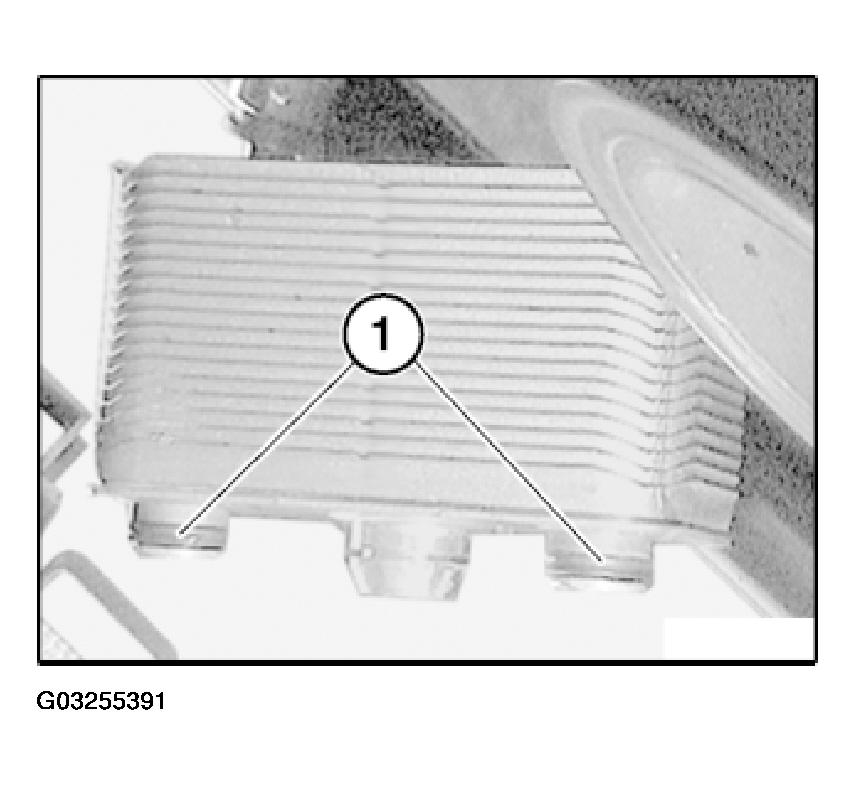

Replace sealing rings (1) on heat exchanger.

Fig 4: Removing Sealing Rings On Heat Exchanger

Courtesy of BMW OF NORTH AMERICA, INC.

All cars:

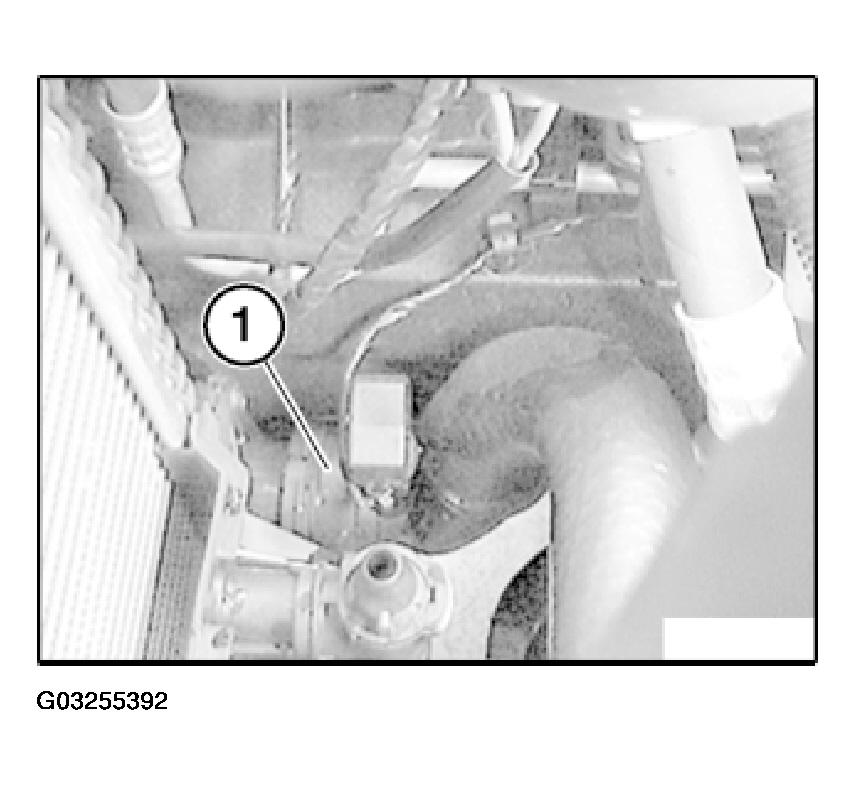

Detach water hose (1) from radiator at bottom.

Fig 5: Detaching Lower Radiator Hose

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws.

Tightening torque, refer to 17 11 1AZ in COOLING SYSTEM - TIGHTENING TORQUES - X5 (4.6 L) .

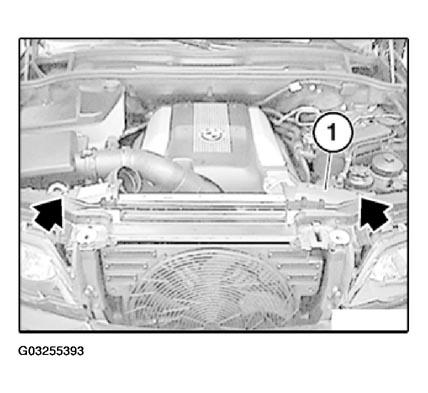

Remove retaining bracket (1).

Fig 6: Removing Retaining Bracket

Courtesy of BMW OF NORTH AMERICA, INC.

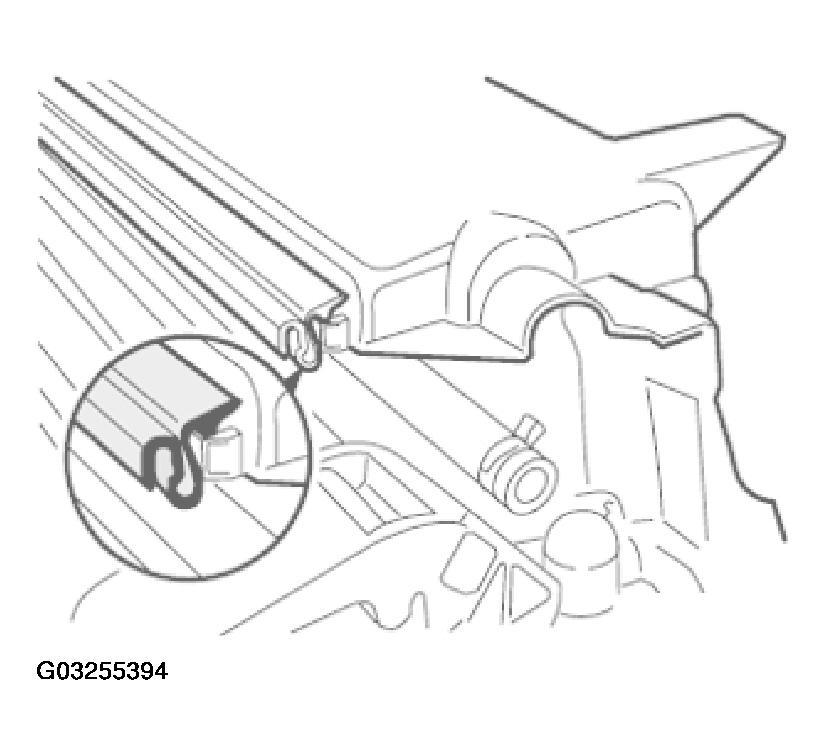

Detach sealing strip between radiator and radiator cassette.

Fig 7: Detaching Sealing Strip Between Radiator And Radiator Cassette

Courtesy of BMW OF NORTH AMERICA, INC.

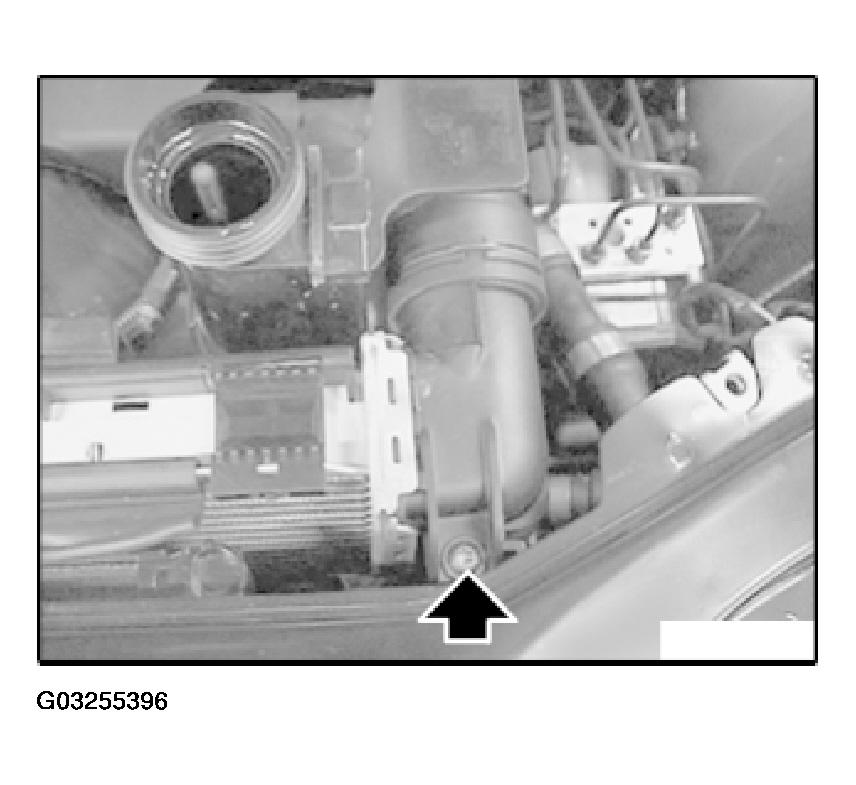

Release screw on right of radiator.

Fig 8: Removing Screw On Right Of Radiator

Courtesy of BMW OF NORTH AMERICA, INC.

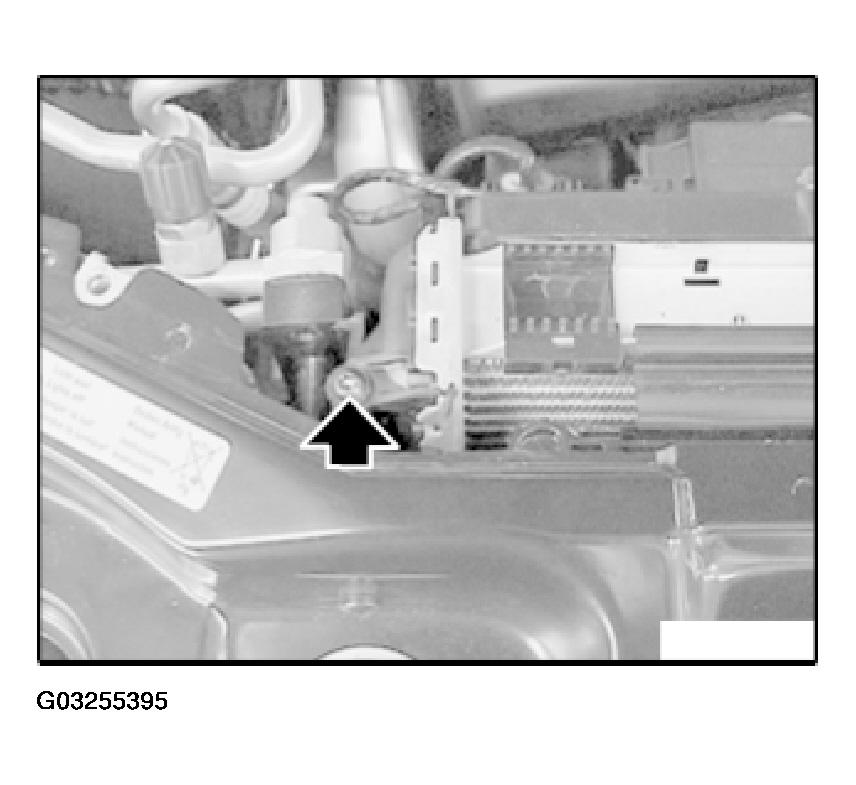

Release screw on left of radiator.

Fig 9: Removing Screw On Left Of Radiator

Courtesy of BMW OF NORTH AMERICA, INC.

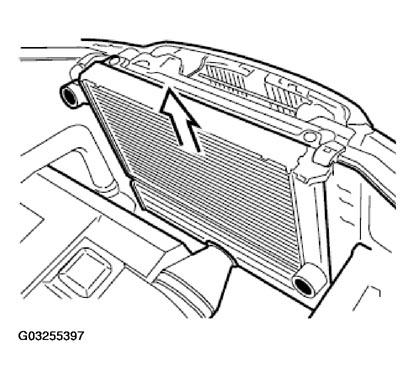

Remove radiator towards top.

Fig 10: Removing Radiator

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

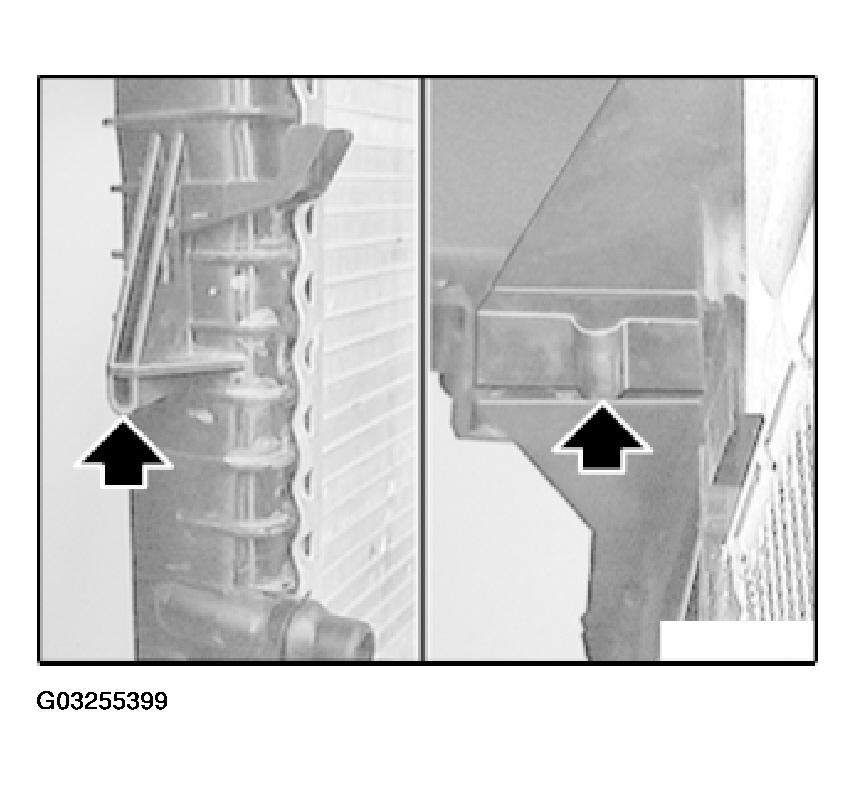

Lugs of both plastic guides (3) must be securely snapped into place in bores.

Replace faulty plastic guides (3).

Fig 11: Installing Plastic Guides And Replacing Faulty Plastic Guides

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Insert radiator with supports into holders on left and right.

Fig 12: Installing Radiator To Supports

Courtesy of BMW OF NORTH AMERICA, INC.

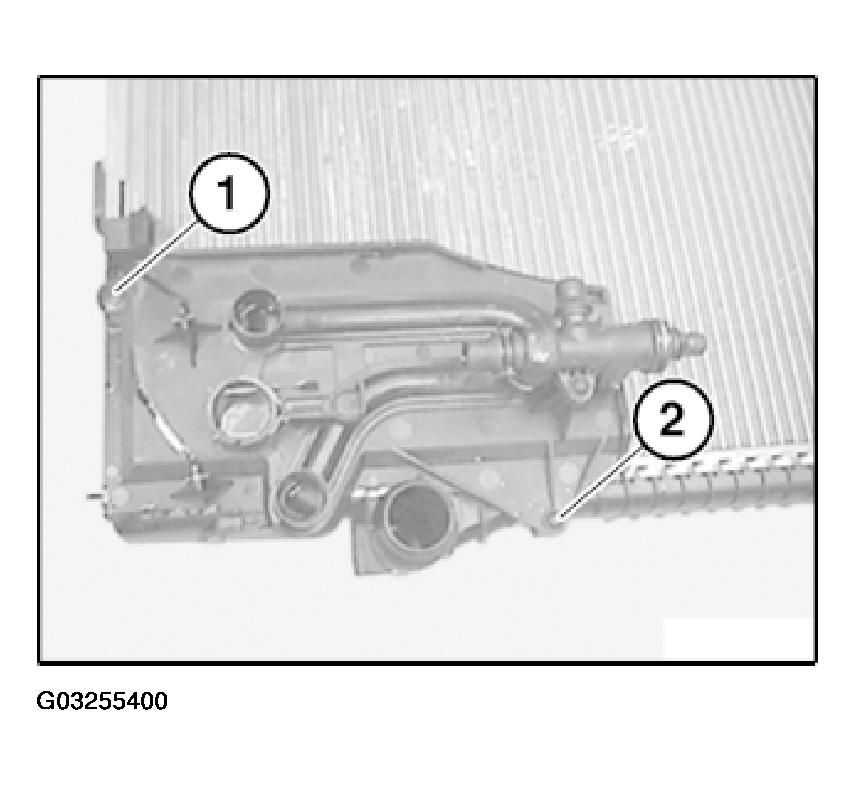

If necessary, remove mounting plate from radiator.

Lever out expansion rivet (1).

Release screw (2).

Remove mounting plate.

Fig 13: Removing Mounting Plate

Courtesy of BMW OF NORTH AMERICA, INC.
