33.... Overview of steering links

WARNING: This page is about a different car, the 2011 BMW X6 and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

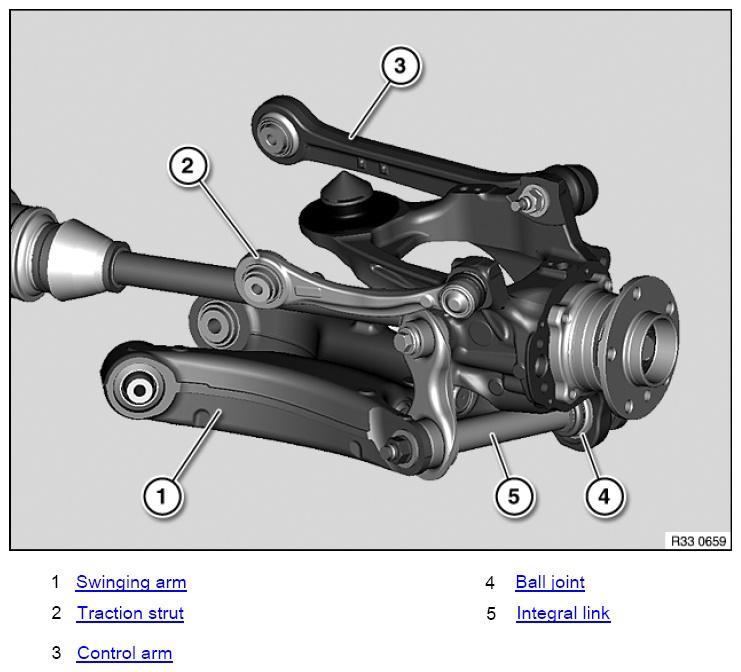

Fig 1: Overview Of Steering Links
G08577563Courtesy of BMW OF NORTH AMERICA, INC.

Safety precautions & general information: See LIFTING THE VEHICLE USING A VEHICLE HOIST , 33 00... INSTRUCTIONS (CHASSIS COMPONENTS MADE OF ALUMINIUM) , and RAISING VEHICLE WITH TROLLEY JACK
