33.... Layout of shock absorber

WARNING: This page is about a different car, the 2011 BMW X6 and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

SAFETY PRECAUTIONS AND GENERAL INFORMATION

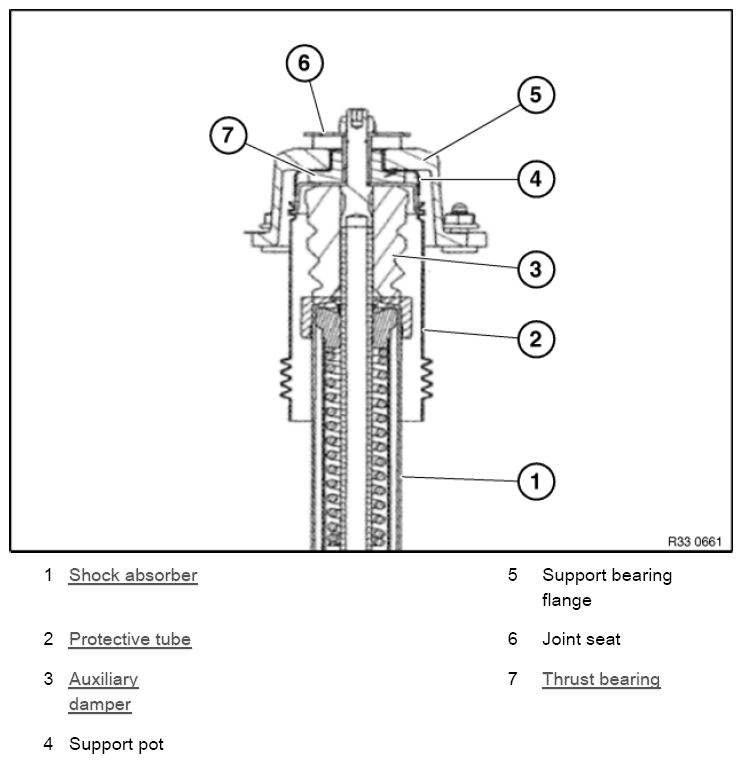

Fig 1: Shock Absorber Layout
G08577559Courtesy of BMW OF NORTH AMERICA, INC.
