33 21 000 Removing and installing/replacing left or right output shaft

WARNING: This page is about a different car, the 2011 BMW X6 and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Always place a new circlip on the output shaft when removing and reinstalling!

Remove REAR WHEEL .

IMPORTANT: Expand anti-twist lock sufficiently to avoid damaging thread when releasing collar nut.

Release collar nut (1), activate parking brake for this purpose.

Installation note:

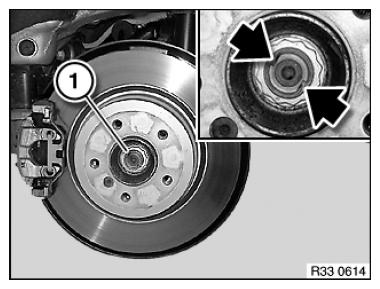

Fig 1: Locating Collar Nut

Courtesy of BMW OF NORTH AMERICA, INC.

Replace collar nut, oil collar nut/wheel bearing contact surface only and tighten down.

No oil permitted on thread of shaft journal or collar nut.

Tightening torque 33 41 1AZ .

Secure collar nut by positive peening on flat areas of output shaft.

Remove REAR AXLE FINAL DRIVE .

IMPORTANT: Secure output shaft against falling out.
Do not damage dust plates (1, 2) when setting down output shaft.

Press OUTPUT SHAFT OUT OF DRIVE FLANGE and remove towards center of vehicle.

Fig 2: Identifying Dust Plates

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

High installation forces indicate that the output shaft spline teeth are damaged or deformed!

Check gearing, replaced damaged parts if necessary.

Check dust plate (1) for damage, renew if necessary.

Replace circlip (2).

Coat contact surface (3) of output shaft with APPROVED REAR AXLE FINAL DRIVE OIL .

Fig 3: Identifying Dust Plate, Retaining Ring And Contact Surface

Courtesy of BMW OF NORTH AMERICA, INC.

After installation:

Check final drive oil level, correct if necessary

Replacement only:

With BMW Diagnosis and Information System under:
- Control unit functions
  Perform function check of transfer box (calibration)
