22 11 100 Replacing right engine support arm (N63)

WARNING: This page is about a different car, the 2011 BMW X6 and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Secure ENGINE in installation position
Remove UNDERBODY PROTECTION
Remove REINFORCEMENT PLATE
Release TIE ROD

Release screw (1).

Tightening torque 17 22 4AZ .

Lay engine cooling lines (2) to one side.

IMPORTANT: After completion of work, check OIL LEVEL .

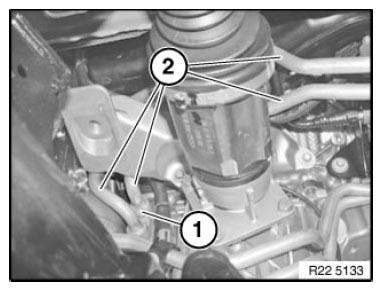

Fig 1: Identifying Engine Cooling Lines And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Recycling:

Catch and dispose of leaking engine oil in a suitable container.

Observe country-specific waste-disposal regulations.

Release screws and engine support arm.

Tightening torque 22 11 3AZ .

Fig 2: Locating Engine Support Arm Screws

Courtesy of BMW OF NORTH AMERICA, INC.
