52 26 030 Removing and installing/replacing armrest for rear seat backrest

WARNING: This page is about a different car, the 2011 BMW X6 and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

Release screw (1).

Tightening torque: 52 26 03AZ .

Twist armrest in direction of arrow out of right mount.

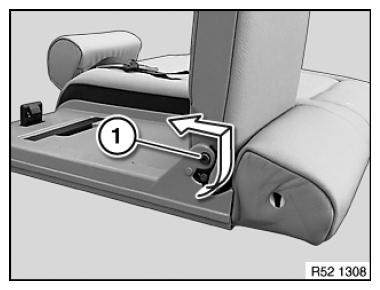

Fig 1: Removing Rear Seat Backrest Armrest Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Hold back left armrest trim with a plastic wedge.

Remove armrest.

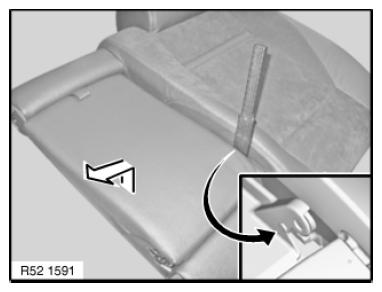

Fig 2: Removing Left Armrest

Courtesy of BMW OF NORTH AMERICA, INC.
