52 13 015 Removing and installing/replacing actuating unit on left or right front seat (normal/semi-electric)

WARNING: This page is about a different car, the 2011 BMW X6 and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove OUTER COVER on front seat

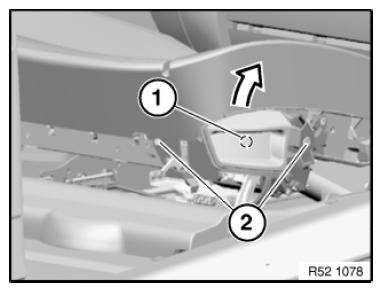

Pull lever and release screw (1).

NOTE: Protect seat rails (mechanism) by covering against chips/debris.

Drill out rivets (2) with 4.2 mm dia. drill bit.

Remove actuating unit.

Fig 1: Removing Actuating Unit Rivets

Courtesy of BMW OF NORTH AMERICA, INC.

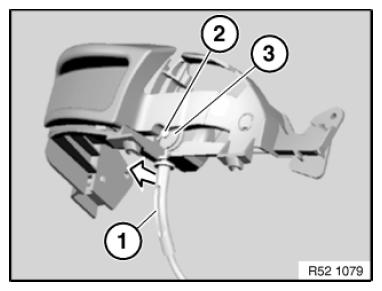

Unclip Bowden cable sleeve (1).

Feed Bowden cable nipple (2) out of fixture (3).

Fig 2: Disconnecting Bowden Cable Sleeve

Courtesy of BMW OF NORTH AMERICA, INC.
