52 13 040 Removing and installing/replacing outer cover on left or right front seat (normal/semi-electric)

WARNING: This page is about a different car, the 2011 BMW X6 and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

Normal version (basic):

Pull lever forward to remove:

If necessary, lever out lower locking point (1) from rear with a screwdriver.

Release screw (2).

If necessary, move seat fully forwards and upwards.

Semi-electric version:

Unclip cover instead of lever (2).

Release screw (2).

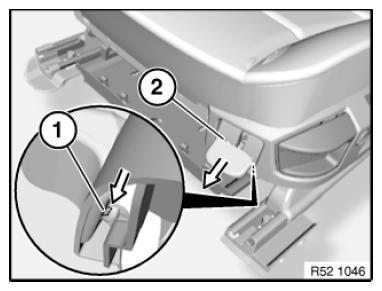

Fig 1: Removing Lower Locking Point And Screw Using Screwdriver

Courtesy of BMW OF NORTH AMERICA, INC.

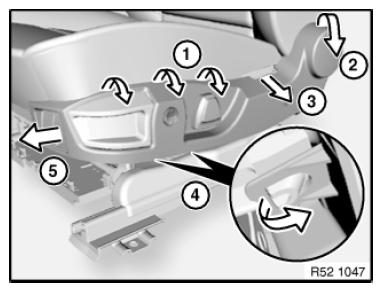

Remove trim:

Unclip at top edge
Unclip at rear towards top side
Pull on belt opening
Unlock lugs
Carefully remove trim towards front

Unfasten plug connection.

Replacement only:

Remove lumbar support and set adjustment switch.

Fig 2: Removing Lumbar Support And Set Adjustment Switch

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Retaining clips and tabs must not be damaged.

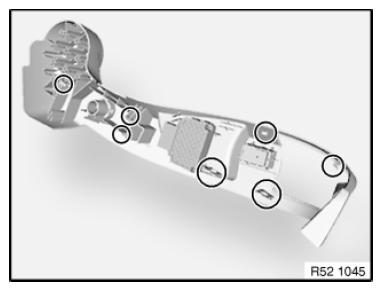

Fig 3: Identifying Retaining Clips And Tabs

Courtesy of BMW OF NORTH AMERICA, INC.
