52 17... Replacing padding for front seat thigh support

WARNING: This page is about a different car, the 2011 BMW X6 and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove THIGH SUPPORT

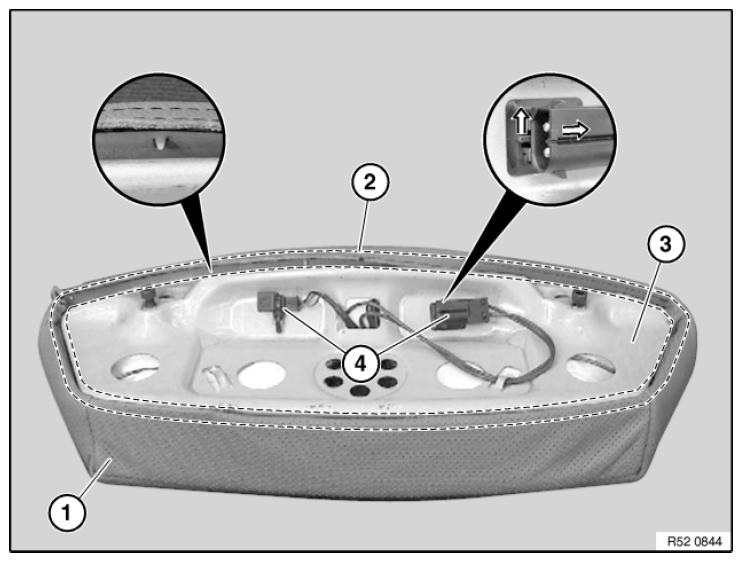

Fig 1: Removing Plug Connections

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Picture shows versions with air conditioning and seat heating.

Feed out seat cover (1) in area (2).

Installation:

Seat cover (1) is fastened by hooks in trim (3).

Remove plug connections (4) and feed out through trim (3).

Remove trim (3); if necessary, remove padding or cover.

Version with seat heating or air conditioning:

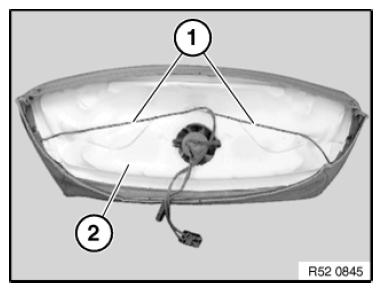

Feed out cable (1) and remove padding (2).

Installation:

Ensure correct cable routing (1).

Fig 2: Identifying Cable And Padding

Courtesy of BMW OF NORTH AMERICA, INC.

Version with air conditioning:

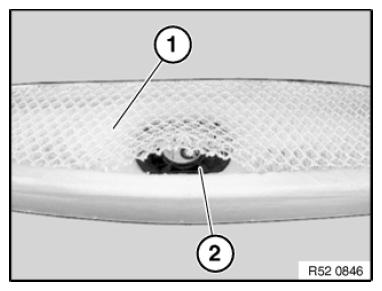

Remove separating net (1).
Lift out fan (2).

Fig 3: Identifying Fan And Separating Net
Courtesy of BMW OF NORTH AMERICA, INC.
