52 17... Removing and installing/replacing left or right thigh support

WARNING: This page is about a different car, the 2011 BMW X6 and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

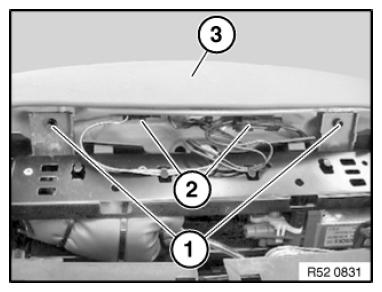

Release screws (1).

Disconnect plug connections (2).

Remove thigh support (3) towards top.

Fig 1: Identifying Thigh Support, Plug Connection And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

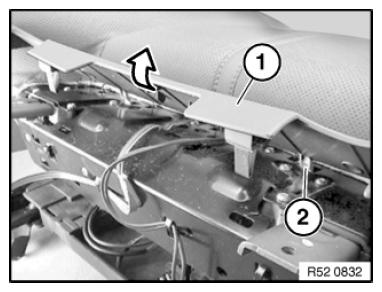

If necessary, unclip trim (1) towards top and remove.

Installation:

Secure guide pins (2) in seat frame and clip trim (1) into place.

Fig 2: Removing Seat Frame Cover

Courtesy of BMW OF NORTH AMERICA, INC.
