52 17 420 Replacing padding for left or right front seat backrest (comfort)

WARNING: This page is about a different car, the 2011 BMW X6 and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove BACKREST COVER

Remove dividing net (1) towards top.

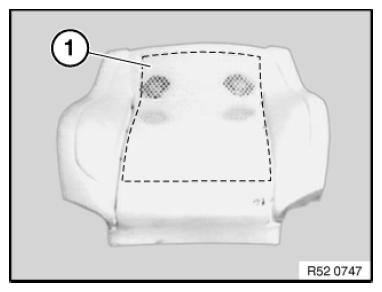

Fig 1: Identifying Dividing Net

Courtesy of BMW OF NORTH AMERICA, INC.

Remove fan (1) towards top.

Installation:

Make sure fans have correct cable routing (2) (cables point to each other).

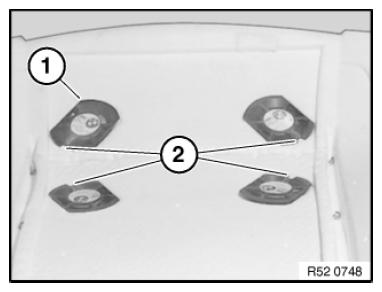

Fig 2: Identifying Fan And Correct Cable Routing

Courtesy of BMW OF NORTH AMERICA, INC.
