52 17 035 Removing and installing/replacing gearing for head restraint adjustment
WARNING: This page is about a different car, the 2011 BMW X6 and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove SHAFT for head restraint adjustment

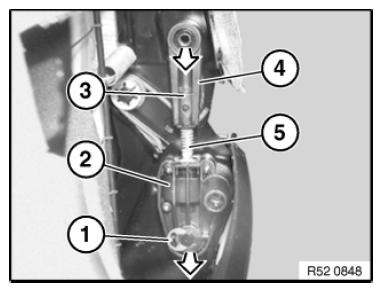

Release screws (4) on left and right.
Tightening torque: 52 10 10AZ .
Remove retainer (1) on left and right.
Remove gearing (2) on left and right straight towards front.
Installation:
To ensure identical adjustment of gearings (2), carry out following work step on both gearings:
- Unscrew component (5) until threaded rod (6) is flush with edge (3).
