41 12 557 Replacing Middle Luggage Compartment Floor (Tail Panel Has Been Removed)

WARNING: This page is about a different car, the 2011 BMW X6 and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: High-voltage system - danger to life!

WARNING: The following points must be strictly observed prior to starting work :

DE-ENERGIZE THE HIGH-VOLTAGE SYSTEM
Observe SAFETY INFORMATION for handling with hybrid cars

Read contents of BODY .

STRIP DOWN VEHICLE

Follow procedure of REPAIR STAGES 2 .

Following new body parts are required (see BMW Electronic Parts Catalogue):

(1) Luggage compartment floor

Following CONSUMABLES are required:

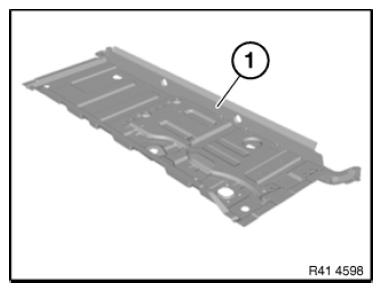

Fig 1: Identifying Luggage Compartment Floor

Courtesy of BMW OF NORTH AMERICA, INC.

Material	Quantity
Adhesive K5a	2
Blind rivets N3	21
EMC screws	7
Cleaning agent R1	1
Sealant D1

Removal of luggage compartment floor:

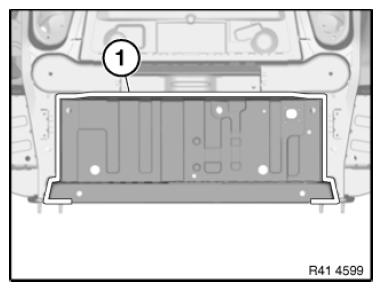

View from below.

Open spot-welded adhesive joints in area (1)

Remove the luggage compartment floor.

Fig 2: Identifying Spot-Welded Adhesive Joints Area

Courtesy of BMW OF NORTH AMERICA, INC.

New part preparation:

Fit luggage compartment floor from underneath and adjust in conjunction with tail panel and secure.

In areas (1) to (3), set 4.2 mm dia. holes for blind rivets.

Area	Number
1	9
2	6
3	6

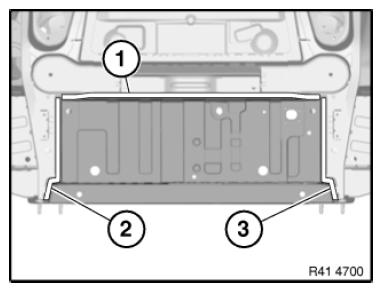

Fig 3: Identifying Blind Rivets Areas

Courtesy of BMW OF NORTH AMERICA, INC.

Remove new part and deburr holes.

IMPORTANT: Do not grind new parts and body in area of bonding surfaces.

Installation of luggage compartment floor:

Clean all bonding surfaces with CLEANING AGENT R1 .

Apply adhesive to bonding surfaces.

When installing, make sure that all bonding surfaces have sufficient adhesive.

Install new part and rivet with blind rivets.

After adhesive has hardened, install 7 EMC SCREWS in areas (1) and (2).

Install EMC screws in area (1) from luggage compartment.

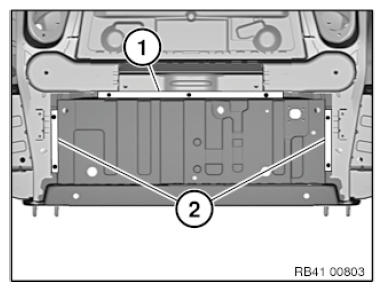

Fig 4: Identifying Luggage Compartment EMC Screws Area

Courtesy of BMW OF NORTH AMERICA, INC.
