41 12 557 Replacing Luggage Compartment Floor, Middle Stripping Operations (Tail Panel Removed)
WARNING: This page is about a different car, the 2011 BMW X6 and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
High-voltage system - danger to life!
WARNING:
The following points must be strictly observed prior to starting work
:
- Disconnect HIGH-VOLTAGE SYSTEM FROM POWER
- Observe SAFETY INFORMATION for handling hybrid cars
NOTE:
Owing to the different engine variants and equipment specifications, not all the components are taken into consideration.
The following list basically represents the removal sequence.
The following list basically represents the removal sequence.
- Remove exhaust system (job number: 18 00 020)
- Remove heat shield
- Remove high-voltage battery unit (job number: 61 25 010)
- Remove positive battery cable (job number: 61 12 002)
- Remove air supply system (job number: 37 22 540)

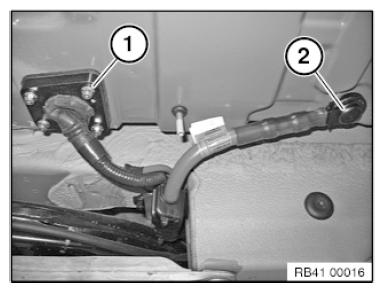

Release nuts for sealing flange connection (1).
Remove sealing flange connection (1) with high-voltage cable (2) and set aside.
Installation note:
Make sure gasket is correctly installed. (watertightness).
Replace gasket if necessary.
Replace self-locking nuts.
Tightening torque 41 12 1AZ .

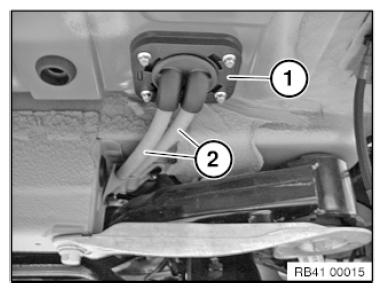

Unscrew nuts.
Remove sealing flange (1) with positive battery cables (2) and set aside.
Installation note:
Make sure gasket is correctly installed. (watertightness).
Replace gasket if necessary.
Replace self-locking nuts.
Tightening torque 41 12 1AZ .
IMPORTANT:
Risk of damage!
Protect high-voltage cable and positive battery cables against mechanical damage.
Protect high-voltage cable and positive battery cables against mechanical damage.
