24 12 650 Replacing radial seal for drive shaft (GA7AHSCD)

WARNING: This page is about a different car, the 2011 BMW X6 and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

IMPORTANT: After completion of work, check TRANSMISSION OIL LEVEL .
Use only approved transmission oil: Dexron VI automatic transmission fluid (GM)
Failure to comply with this instruction will result in serious damage to the transmission.

Necessary preliminary tasks:

Remove GEARBOX

Drive a hole into radial shaft seal (1) using a center punch.

IMPORTANT: Do not use a drill as metal chips may result in transmission malfunction.

Thread special tool 23 0 490 into radial shaft seal (1).

Drive out radial shaft seal (1) with impact weight (2).

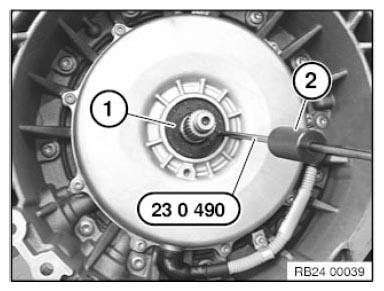

Fig 1: Threading Special Tool (23 0 490) Into Radial Shaft Seal

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Coat sealing lips of new radial shaft seal with clean transmission oil.

Drive shaft seal firmly home with special tool 24 0 330 .

Fig 2: Installing Radial Shaft Seal With Special Tool (24 0 330)

Courtesy of BMW OF NORTH AMERICA, INC.
