24 23 080 Renew freewheel (GA7AHSCD)

WARNING: This page is about a different car, the 2011 BMW X6 and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

WARNING: High-voltage system - danger to life!

NOTE: Observe safety instructions for handling hybrid cars!

Necessary preliminary tasks:

Remove AUTOMATIC TRANSMISSION and, with transmission support 24 0 200 , mount on assembly stand 00 2 300

Release nut (1) of high-voltage cable.

Installation note:

Clean thread of high-voltage cable.

Tightening torque, 24 00 8AZ.

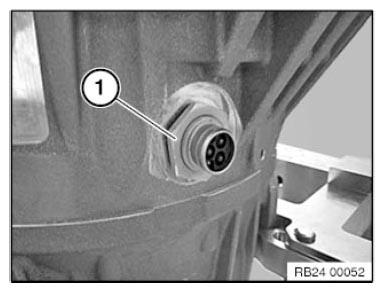

Fig 1: Identifying High-Voltage Cable Nut

Courtesy of BMW OF NORTH AMERICA, INC.

Release clamp (1) of cable routing.

Release screws of EMP (2) on gearbox housing.

Tightening torque, 24 00 9AZ.

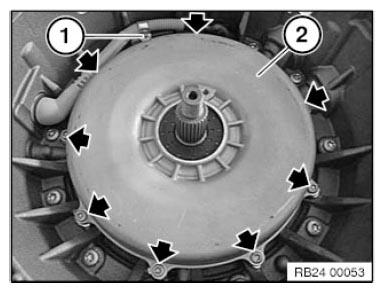

Fig 2: Identifying Cable Routing Clamp And EMP With Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release circlip (1).

Installation note:

Replace circlip (1).

Fig 3: Identifying Circlip

Courtesy of BMW OF NORTH AMERICA, INC.

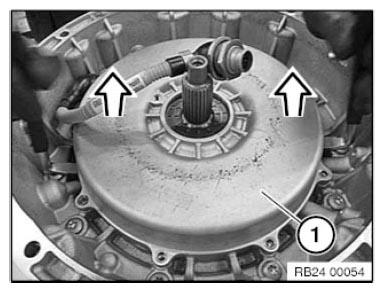

Carefully lever out EMP (1) with suitable tool and pull off.

Fig 4: Removing EMP With Suitable Tool

Courtesy of BMW OF NORTH AMERICA, INC.

Remove ORC clutch

Insert synchronizing key of special tool set 24 0 360 in drive shaft.

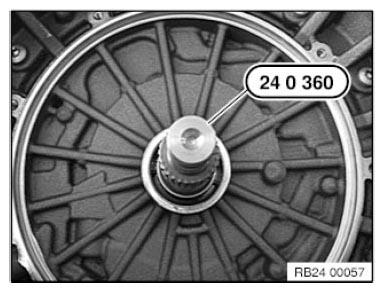

Fig 5: Inserting Synchronizing Key Of Special Tool Set (24 0 360) In Drive Shaft

Courtesy of BMW OF NORTH AMERICA, INC.

Apply collet (1) on upper collar (2) of ORC clutch and tension.

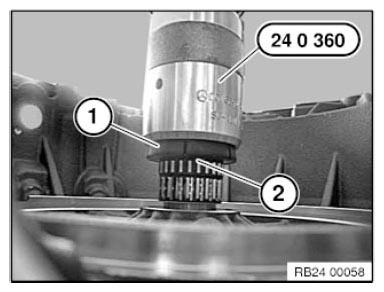

Fig 6: Applying Collet On Upper Collar Of ORC Clutch And Tension

Courtesy of BMW OF NORTH AMERICA, INC.

Hold extractor 24 0 360 and pull ORC clutch off of transmission input shaft with spindle.

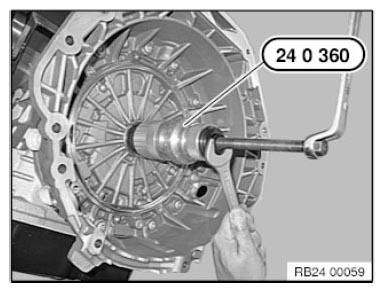

Fig 7: Pulling ORC Clutch Off Of Transmission Input Shaft With Spindle

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Risk of damage:
After pulling off the ORC clutch, check that its segments/rolls (1) are complete.
No segments/rolls (1) are permitted to be missing or lying in the transmission.

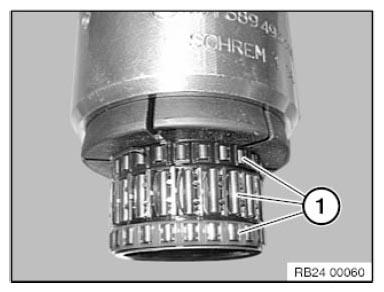

Fig 8: Identifying Segments/Rolls

Courtesy of BMW OF NORTH AMERICA, INC.

Mount EMP:

Installation note:

O-ring (1) must be renewed!

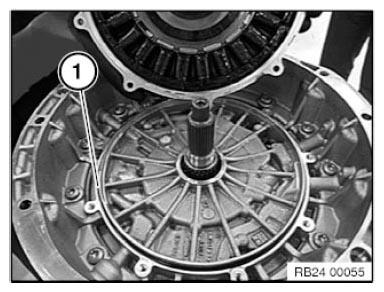

Fig 9: Identifying O-Ring

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Mount EMP without radial shaft seal!

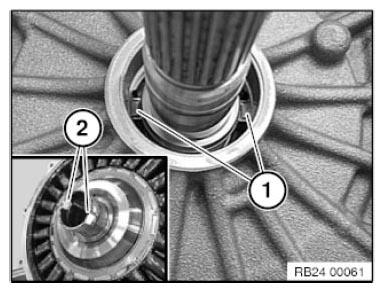

Align lugs (1) of drive shaft with recesses (2) on EMP and mount and screw on EMP!

Tightening torque 24 00 9AZ .

Fig 10: Identifying Lugs Of Drive Shaft And Recesses

Courtesy of BMW OF NORTH AMERICA, INC.

Mount ORC clutch:

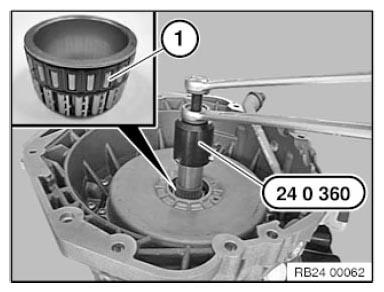

IMPORTANT: Before mounting ORC clutch, check which thread (left-hand or right-hand thread) is found in the transmission input shaft and use the corresponding spindle of special tool set 24 0 360 !
Note installation position of ORC clutch. Short segments (1) face upward!

Fig 11: Installing ORC Clutch Using Special Tool Set (24 0 360)

Courtesy of BMW OF NORTH AMERICA, INC.

Position ORC clutch incl. plastic protective cap, which is used as a mounting aid, on transmission input shaft and press clutch onto transmission input shaft using special tool 24 0 360 .

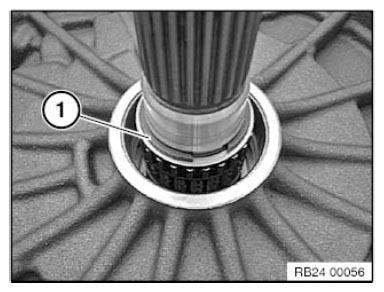

Mount circlip (1)!

Fig 12: Identifying Circlip

Courtesy of BMW OF NORTH AMERICA, INC.

Renew radial shaft seal!

Installation note:

Coat sealing lips of new radial shaft seal with clean transmission oil.

Radial shaft seal firmly home with special tool 24 0 330 .

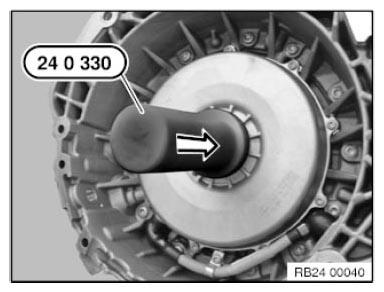

Fig 13: Installing Radial Shaft Seal With Special Tool (24 0 330)

Courtesy of BMW OF NORTH AMERICA, INC.
