51 12 210 Removing and installing trim on rear left or right bumper side section

WARNING: This page is about a different car, the 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

Partially detach REAR WHEEL ARCH TRIM (1) (see picture).

Unfasten screws (2 and 3).

Release expansion rivet (4).

Installation:

If necessary, replace expander rivet (4).

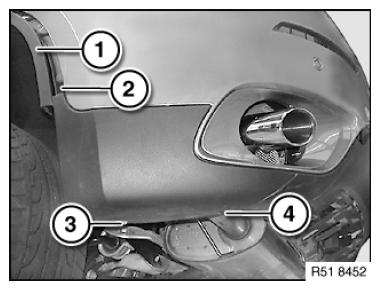

Fig 1: Identifying Rear Wheel Arch Trim, Expander Rivet And Mounting Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Break open welded clips (1).

Installation:

Secure broken open clips with retainers.

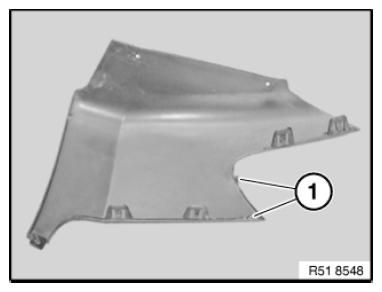

Fig 2: Identifying Welded Clips

Courtesy of BMW OF NORTH AMERICA, INC.

Carefully detach trim (1) from catches (2).

Installation:

Catches on trim and bumper side section must not be damaged.

Fig 3: Identifying Rear Wheel Arch Trim And Catches

Courtesy of BMW OF NORTH AMERICA, INC.
