51 16 375 Removing and installing/replacing kinematic unit for glovebox lid

WARNING: This page is about a different car, the 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove LOCK FOR GLOVEBOX LID on left

NOTE: Kinematic unit for glovebox lid consists of reversing lever and damping element with spring.

Close glovebox lid.

E70/71 up to 09/09 only

Release tab washer (1) and remove pin (2).

Release pin (3).

Remove reversing lever (4).

Installation:

Replace tab washer (1) and pin (2).

Fig 1: Identifying Glovebox Lid Tab Washer, Pin And Reversing Lever

Courtesy of BMW OF NORTH AMERICA, INC.

from 09/09

Release tab washer (1) and remove pin (2).

Release pin (3).

Remove reversing lever (4).

Installation:

Replace tab washer (1) and pin (2).

Contact lug (5) for microswitch must not be damaged or missing.

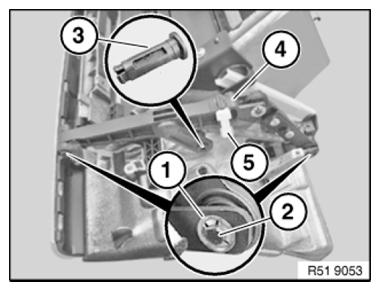

Fig 2: Identifying Glovebox Lid Tab Washer, Pin, Reversing Lever And Microswitch Lug

Courtesy of BMW OF NORTH AMERICA, INC.

Open glovebox lid.

Disconnect spring (1).

Release screw (2).

Feed damping element (3) out of holder (4).

Fig 3: Identifying Glovebox Lid Spring, Damping Elements, Holders And Screw

Courtesy of BMW OF NORTH AMERICA, INC.
