51 16 373 Removing and installing/replacing lock for glovebox lid on left or right

WARNING: This page is about a different car, the 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove GLOVE COMPARTMENT

E70/71 up to 09/09 only

Release screws (1).

Remove lock (2).

Fig 1: Identifying Glovebox Lid Lock And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Grommets (1) on glovebox (2) must not be damaged.

Lock must be correctly inserted into grommets (1).

Fig 2: Identifying Glovebox And Grommets

Courtesy of BMW OF NORTH AMERICA, INC.

from 09/09

Open glovebox lid.

For this purpose, move locking rod (1) in direction of arrow.

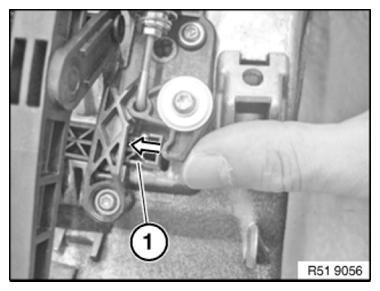

Fig 3: Pushing Locking Rod

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (3) from drive unit for locking rod (1).

Tightening torque 51 16 3AZ .

Remove drive unit for locking rod (1).

Installation:

Carry out manual function check for unlocking and locking of glove box cover.

When locked, the operating tab (4) must correctly operate the microswitch (2).

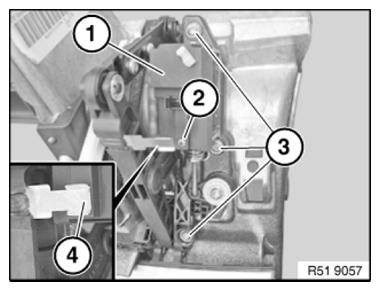

Fig 4: Identifying Locking Rod, Microswitch, Operating Tab And Screws

Courtesy of BMW OF NORTH AMERICA, INC.
