51 47 161 Removing and installing/replacing right luggage compartment wheel arch panel

Necessary preliminary tasks:

• Remove RIGHT STORAGE COMPARTMENT

E70 only:

• Remove right backrest side section

With E70 (Security, Security-Plus) only:

• Remove right backrest side section

In E71/72 only:

• Remove RIGHT C-PILLAR COVER

Press latch mechanisms (1) together from inside and feed out cover (2).

Fig 1: Identifying Latch Mechanisms And Wheel Arch Trim Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection on charging socket(1).

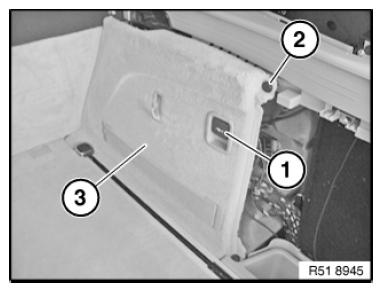

Release clamps (2).

Feed out luggage compartment wheel arch panel (3) in inwards direction.

Fig 2: Identifying Luggage Compartment Wheel Arch Panel, Charging Socket And Clamps

Courtesy of BMW OF NORTH AMERICA, INC.

E70 Security Plus (SA109) only:

Disconnect plug connection on charging socket(1).

Release clamps (2).

Feed out luggage compartment wheel arch panel (3) in inwards direction.

Fig 3: Identifying Luggage Compartment Wheel Arch Panel, Charging Socket And Clamps

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Remove charging socket (1).

Version with storage compartment package:

Remove multifunction hook (2).

Remove tensioning strap (3).

Fig 4: Identifying Tensioning Strap, Multifunction Hook And Charging Socket

Courtesy of BMW OF NORTH AMERICA, INC.

Saw out openings with an oscillating saw and a straight blade on the molding.

E70 Security Plus (SA109) only:

Wheel arch panel must also be adapted.

Make cut-outs with a jigsaw and a straight blade as follows:

1. 132 mm
2. 11 mm
3. 37 mm
4. 44 mm
   Fig 5: Identifying Wheel Arch Panel Dimensions
