51 64 020 Removing and installing (replacing) top left connection (cross-strut) (E72)

WARNING: This page is about a different car, the 2011 BMW X6 and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Follow INSTRUCTIONS FOR WORKING on cooling system
Remove COVER FOR ELECTRONICS BOX POWER MODULE
Remove POWER MODULE (APM)
Remove INTAKE PORT .

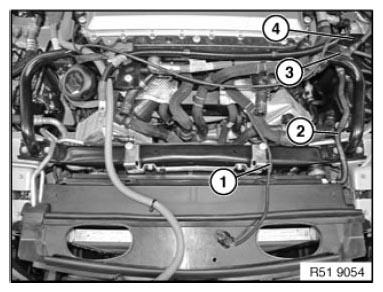

Disconnect clips at position (1). Pull off coolant hose (2) at position (3) from expansion tank (4) and lay to one side.

Fig 1: Identifying Clips, Coolant Hose And Expansion Tank

Courtesy of BMW OF NORTH AMERICA, INC.

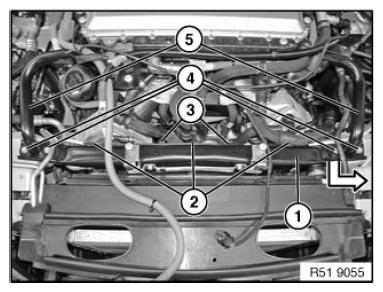

Disconnect Bowden at position (2). Disconnect air conditioner cable at position (3). Release screws (4).

Tightening torque: 51 71 4AZ

Lift holder (5) slightly and feed out cross-strut (1) in direction of arrow.

Fig 2: Feeding Out Cross-Strut

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement

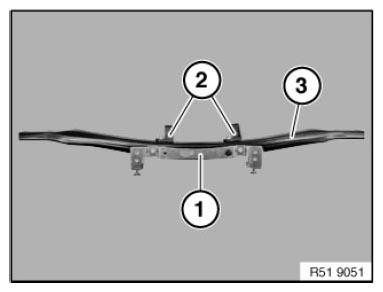

Modify APM holder (1) on new replacement cross-strut (3).

Tightening torque: 51 71 7AZ

Modify both holders (2) for new air conditioning cable (2) on new replacement cross-strut (3).

Tightening torque: 51 71 8AZ

Fig 3: Identifying APM Holder, Cross-Strut And Holders

Courtesy of BMW OF NORTH AMERICA, INC.
