31 12 002 Removing and installing/replacing top left wishbone

WARNING: This page is about a different car, the 2011 BMW X6 and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

NOTE: Control arms with + or - marking (see Fig 1) are camber correction arms:
- Underdimension variant
+ Overdimension variant
These camber correction arms are used to correct the camber values by 30 minutes. To be used only if the tolerance values are exceeded or undershot!
An unmarked wishbone is a standard part.

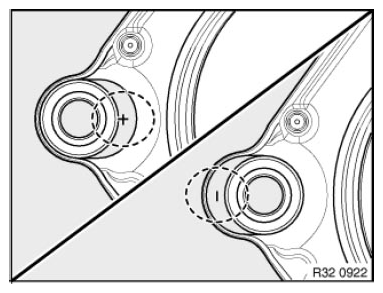

Fig 1: Identifying Marking On Wishbones
G08577392Courtesy of BMW OF NORTH AMERICA, INC.

Necessary preliminary tasks:

Unscrew nuts (1).

Installation note:

Replace self-locking nuts.

Tightening torque 31 31 1AZ .

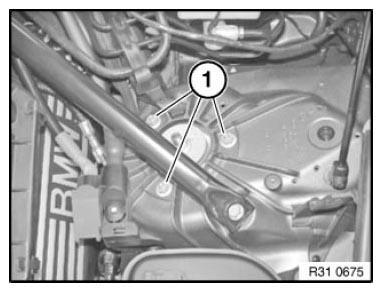

Fig 2: Identifying Self-Locking Nuts
G08577393Courtesy of BMW OF NORTH AMERICA, INC.

Slacken nut (1).

Remove jointed rod (2) from upper wishbone (3).

Installation note:

Replace self-locking nut.

Tightening torque 37 14 5AZ .

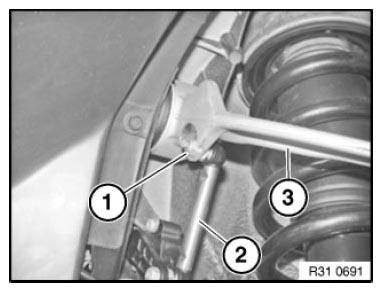

Fig 3: Identifying Jointed Rod, Upper Wishbone And Nut
G08577394Courtesy of BMW OF NORTH AMERICA, INC.

Secure special tool 31 5 220 with wheel studs to drive flange.

Support swivel bearing with special tool 31 5 220 and workshop jack.

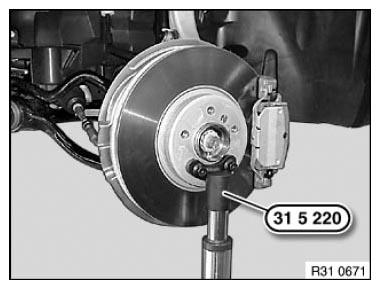

Fig 4: Supporting Swivel Bearing With Special Tool (31 5 220) And Workshop Jack
G08577395Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten nut (1) and remove screw (2).

Installation note:

Keep wishbone to swivel bearing connection clean and free from oil and grease.

Note direction of insertion of screw.

Screw must rest correctly in groove of ball stud.

Replace self-locking nut.

Tightening torque 31 12 6AZ .

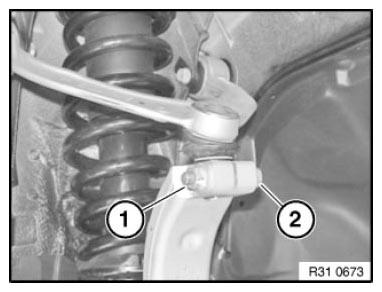

Fig 5: Identifying Upper Control Arm And Bolt
G08577396Courtesy of BMW OF NORTH AMERICA, INC.

Release nuts of screws (1).

Remove screws (1); if necessary, lower/raise swivel bearing and spring strut using workshop jack.

Remove wishbone (2) from swivel bearing.

Installation note:

Replace screws and nuts.

Set ride height at front left (right) to normal position (see TECHNICAL DATA ) and tighten screw/bolt connection.

Tightening torque 31 12 5AZ .

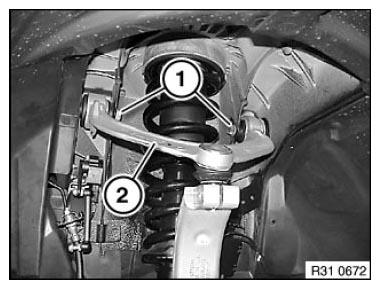

Fig 6: Identifying Wishbone And Screws
G08577397Courtesy of BMW OF NORTH AMERICA, INC.

After installation:
