36 11 105 Removing and installing RDC (Tyre Pressure Control) control unit

WARNING: This page is about a different car, the 2011 BMW X6 and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DISCHARGE (ESD PROTECTION) .

Necessary preliminary tasks:

Remove TRIM PANEL FOR PEDAL ASSEMBLY

Release screws (1).

Remove air duct (2).

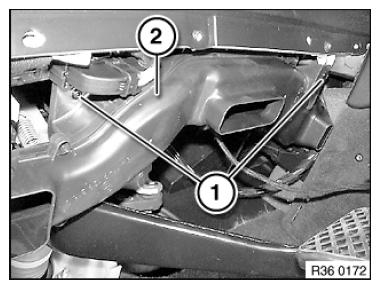

Fig 1: Identifying Screws And Air Duct

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (1).

Press lug (3) in direction of arrow and pull out control unit (2) towards bottom.

Fig 2: Identifying Plug Connection, Control Unit And Lug

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out PROGRAMMING/ENCODING
