72 12 060 Removing and installing or replacing left or right head airbag

WARNING: This page is about a different car, the 2011 BMW X6 and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Read and comply with SAFETY REGULATIONS for handling airbag modules and pyrotechnical belt tensioners.
Incorrect handling can activate airbag and cause injury.
A damaged head airbag must be replaced.
A damaged head airbag exhibits an impaired protective function and in extreme cases loses its protective function altogether.

Necessary preliminary tasks:

Clamp off BATTERY NEGATIVE LEAD
Remove ROOFLINER
Follow INSTRUCTIONS for unlocking and locking airbag plug connection

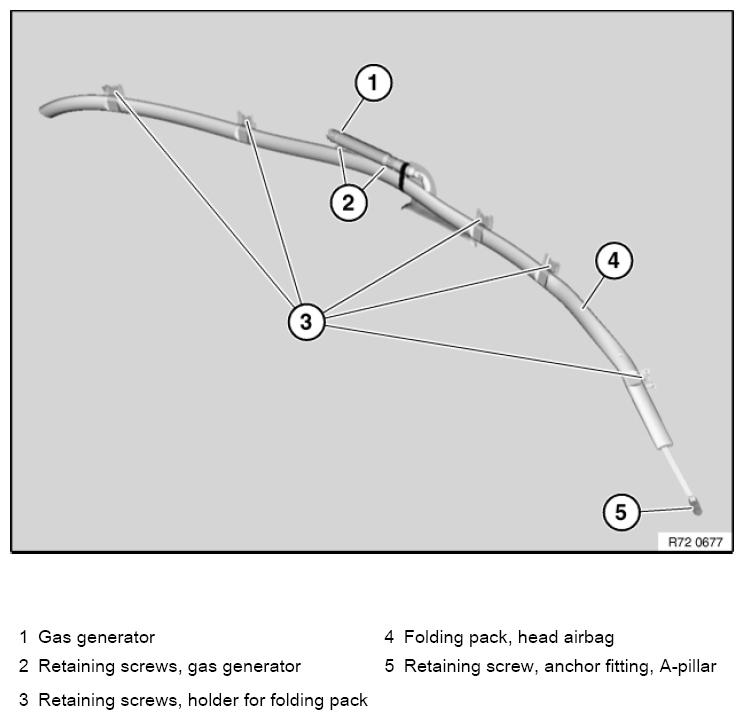

Installation summary, retaining elements, head airbag:

Fig 1: Identifying Head Airbag Retaining Elements

G08574556

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: When removing head airbag, do not damage

Head airbag
Windscreen
Retaining clips
Trim panels

Do not damage!

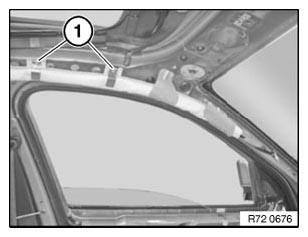

Release screw (1).

Tightening torque: 72 12 02AZ .

Fig 2: Identifying Head Airbag Screw

G06214059

Courtesy of BMW OF NORTH AMERICA, INC.

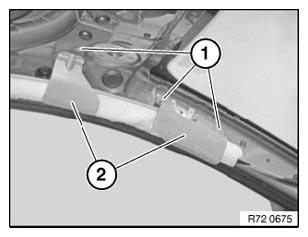

Release retaining screws (1).

Tightening torque: 72 12 05AZ .

Remove deformation plates (2).

Fig 3: Identifying Deformation Plates And Retaining Screws

G06214060

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1) on A-pillar.

Tightening torque: 72 12 02AZ .

Fig 4: Identifying Screw On A-Pillar

G06214061

Courtesy of BMW OF NORTH AMERICA, INC.

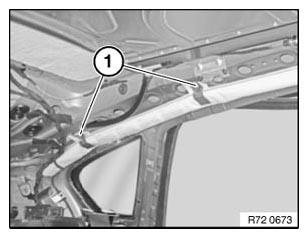

Release screws (1).

Tightening torque: 72 12 02AZ .

Fig 5: Identifying Head Airbag Screw

G06214062

Courtesy of BMW OF NORTH AMERICA, INC.

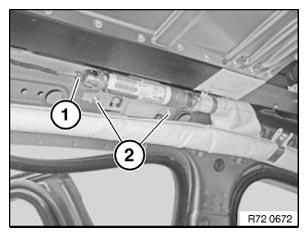

UNLOCK AND DISCONNECT plug (1) for gas generator.

Unfasten screws (2).

Tightening torque: 72 12 04AZ .

Remove gas generator.

Installation:

Gas generator is coded against incorrect installation.

Fig 6: Identifying Gas Generator Plug And Screw

G06214063

Courtesy of BMW OF NORTH AMERICA, INC.
