61 61 270 Removing and installing or replacing bracket for windscreen wiper system complete with motor

WARNING: This page is about a different car, the 2011 BMW X6 and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove COWL PANEL COVER

Release screws (1). Tightening torque 61 61 6AZ .

Disconnect plug connection (2).

Feed out bracket for windscreen wiper system (3) in upward direction.

Installation:

Rubber guide (4) must be correctly seated in guide (5).

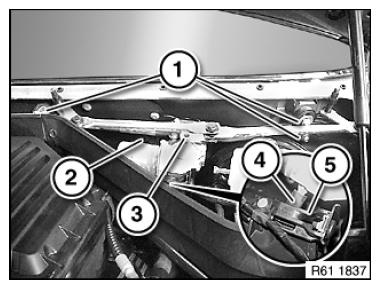

Fig 1: Identifying Windscreen Wiper System, Plug Connection, Guide And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Before installing wiper arms, allow wiper motor to return to its rest position.

To ensure the wiper system works properly, CHECK AND CORRECT the contact angle of the wiper arms.
