61 61 010 Checking/adjusting contact angle of windscreen wiper arms on windscreen

WARNING: This page is about a different car, the 2011 BMW X6 and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 220
61 6 100

NOTE: The wipe quality is improved by precise adjustment of the CONTACT/APPROACH ANGLE of the wiper arms.

Necessary preliminary tasks:

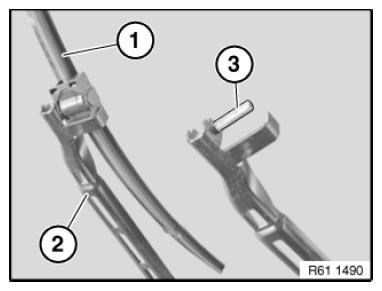

Remove WIPER BLADE (1) FROM WIPER ARM (2)

NOTE: Pin (3) is locator for special tool 61 6 100.

Fig 1: Identifying Wiper Blade, Wiper Arm And Pin

Courtesy of BMW OF NORTH AMERICA, INC.

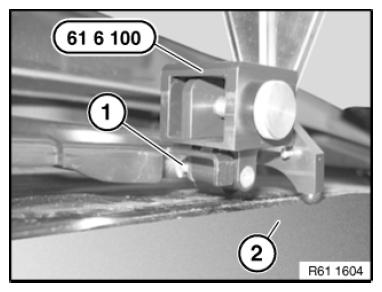

Push special tool 61 6 100 onto pin (1).

Place special tool 61 6 100 on windscreen (2) and read off value in degrees on scale.

Fig 2: Pushing Special Tool (61 6 100) Onto Windscreen Pin

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: LHD vehicles are covered by the scale range of 0 to -10 and RHD vehicles by the scale range of 0 to +10.

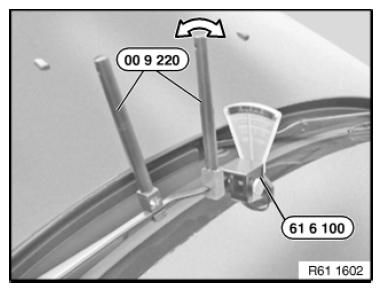

If the specified number in degrees is not correct, the wiper arm must be bent with special tool 00 9 220 at the point shown.

Fig 3: Adjusting Wiper Arm Using Special Tools (00 9 220) And (61 6 100)
