61 31 229 Removing and installing/renewing both switches on sport steering wheel

WARNING: This page is about a different car, the 2011 BMW X6 and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove AIRBAG UNIT

NOTE: Steering wheel shown removed for purposes of clarity.

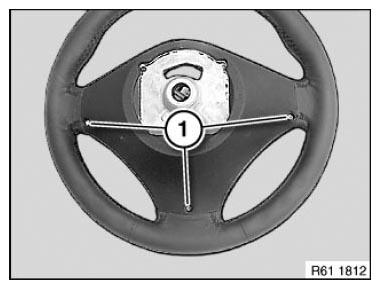

Fig 1: Identifying Steering Wheel Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Version - shift paddles for automatic transmission:

Release screws (1).

Disconnect plug connections (2).

Fig 2: Identifying Plug Connection And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Both sport steering wheel switches (1) are connected to each other by the wiring harness.

Disconnect plug connections (2).

Detach switches on sport steering wheel (1) with design cover (3) in direction of arrow from steering wheel.

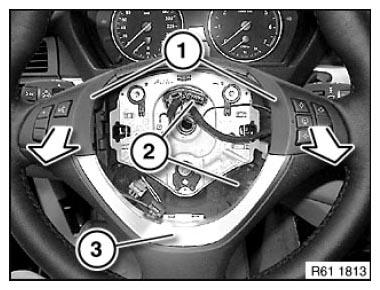

Fig 3: Removing Sport Steering Wheel Switches

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Make sure wiring harnesses are correctly routed.

Make sure switches on sport steering wheel (1) with design cover (3) are correctly seated on steering wheel.

Release screws (1).

Feed wiring harness (3) out of design cover (4).

Remove switches on sport steering wheel (2) from design cover (4).

Installation:

Make sure wiring harness (3) is correctly laid on design cover (4).

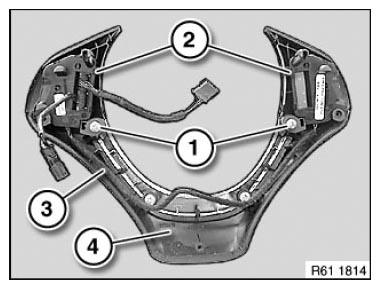

Fig 4: Identifying Sport Steering Wheel, Wiring Harness, Design Cover And Screws

Courtesy of BMW OF NORTH AMERICA, INC.
