32 34 030 Removing and installing/replacing airbag unit (sport steering wheel)

WARNING: This page is about a different car, the 2011 BMW X6 and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Observe the following instructions to avoid any risk of injury by the airbag unit.

Comply with SAFETY REGULATIONS for handling components with gas generators.
Do not exert any force on the airbag unit.
Use only specified tools for releasing the airbag unit.

NOTE: Incorrect handling may result in triggering of the airbag unit and thereby cause serious injury.

IMPORTANT: STEERING WHEEL must be replaced if airbag unit has been triggered!
Follow PROCEDURE AFTER AIRBAG TRIGGERING .

Necessary preliminary tasks:

Disconnect BATTERY NEGATIVE LEAD

Insert Torx screwdriver T30 (1) at an angle into concealed opening on reverse side of steering wheel until a spring resistance is felt (approx. 2 cm).

Increase pressure with Torx screwdriver T30 (1) on spring leg until airbag unit is unlocked.

Repeat procedure on other side.

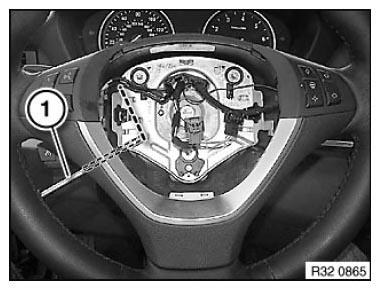

Fig 1: Inserting Torx Screwdriver T30 Into Concealed Opening On Reverse Side Of Steering Wheel

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Make sure electrical leads are correctly positioned.

Snap airbag unit with uniform pressing force plane-parallel in direction of steering column shaft into steering wheel.

WARNING: Risk of injury!
Airbag unit may only be set down with the airbag itself facing upwards .

Tilt airbag unit (1) towards rear.

Disconnect PLUG CONNECTIONS (2) and remove airbag unit (1).

Installation:

Connect plugs to connections of same color on airbag unit.

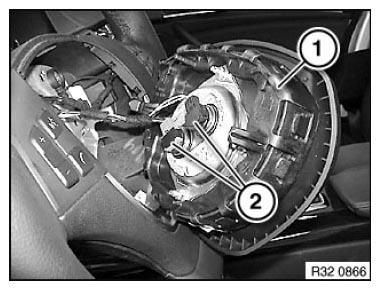

Fig 2: Identifying Plug Connections And Airbag Unit
