11 51 000 Removing and installing/replacing water pump (M62/S62)

WARNING: This page is about a different car, the 2003 BMW X5 and 2002 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Drain off coolant and dispose of correctly.

Installation:

Vent cooling system and check for leaks,

refer to 17 00 005 DRAINING AND TOPPING UP COOLANT (M62) .

Remove vibration damper,

refer to 11 23 010 REMOVING AND INSTALLING/REPLACING VIBRATION DAMPER (M62) .

Remove thermostat housing,

refer to 11 53 000 REMOVING AND INSTALLING/REPLACING COOLANT THERMOSTAT (M62) .

Remove pulley.
Remove coolant hose.
Unfasten screws.
Remove water pump.

Installation:

Make sure that sleeves are correctly seated.

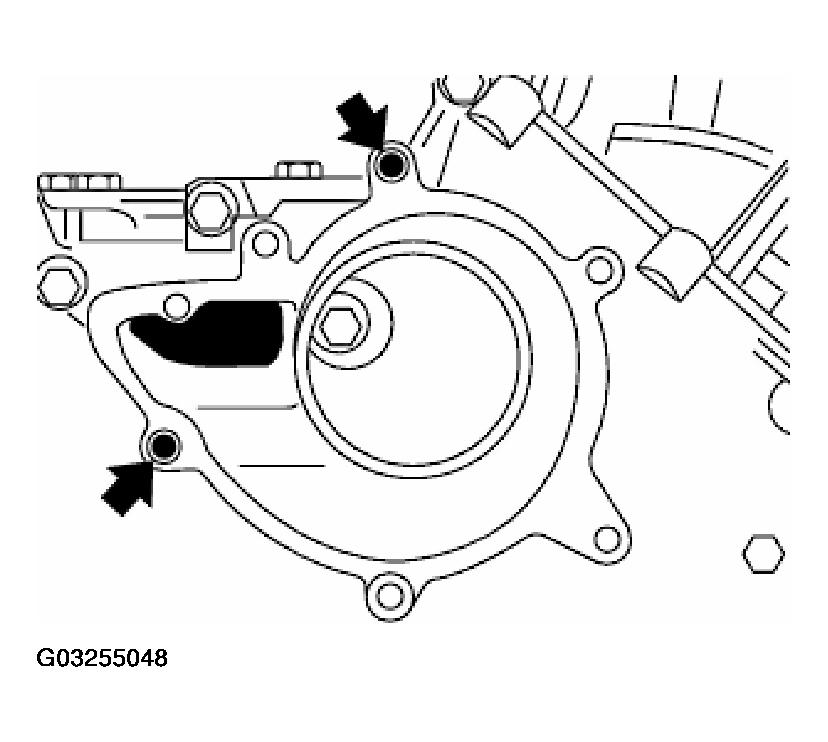

Fig 1: Identifying Installed Position Of Sleeves

Courtesy of BMW OF NORTH AMERICA, INC.

Clean sealing faces.

Replace seal.
