11 14 085 Removing and installing timing case cover, top right (M62 VANOS from 9/98)

WARNING: This page is about a different car, the 2003 BMW X5 and 2002 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

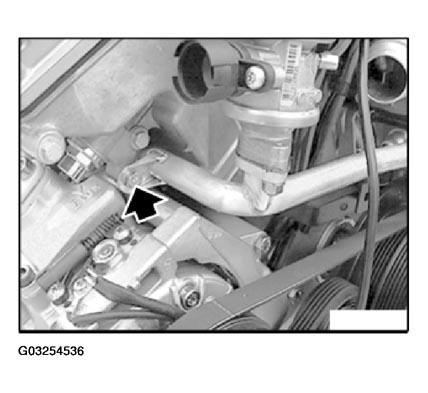

Disconnect plug connection to check valve.

Detach secondary-air line on timing case cover, top left and right.

Detach secondary-air line on bracket and remove.

Installation:

Clean sealing faces on cylinder head, replace sealing ring on secondary-air line and apply a thin coat of grease as anti-friction agent.

Fig 1: Removing Secondary-Air Line

Courtesy of BMW OF NORTH AMERICA, INC.

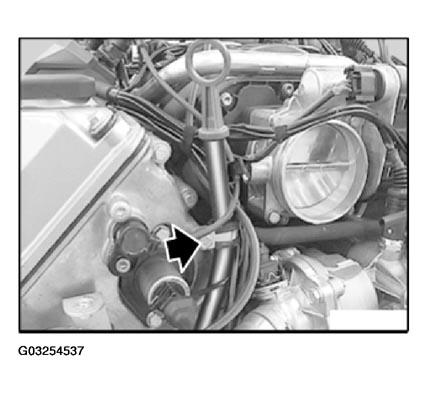

Unfasten top screw from dipstick tube.

Fig 2: Removing Dipstick Tube Clamp

Courtesy of BMW OF NORTH AMERICA, INC.

Remove right cylinder head cover. These tasks are described in the work step Removing and installing/sealing both cylinder head covers,

refer to 11 12 004 REMOVING AND INSTALLING/SEALING BOTH CYLINDER HEAD COVERS (M62) .

Remove piston for chain tensioner,

refer to 11 31 090 INSTALLING AND REMOVING/REPLACING PISTON FOR CHAIN TENSIONER (M62) .

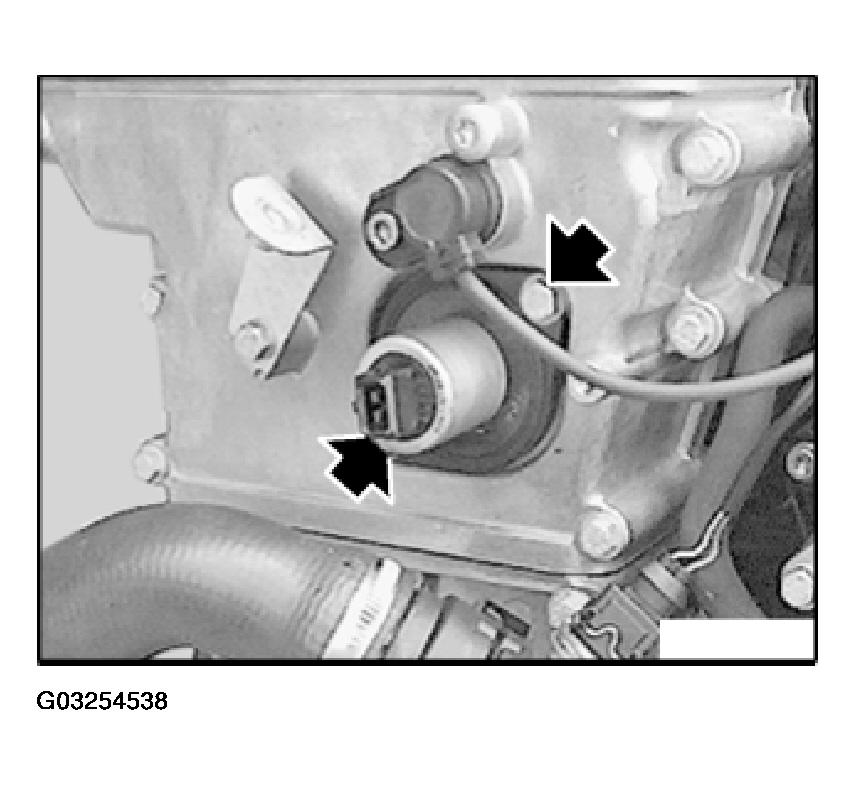

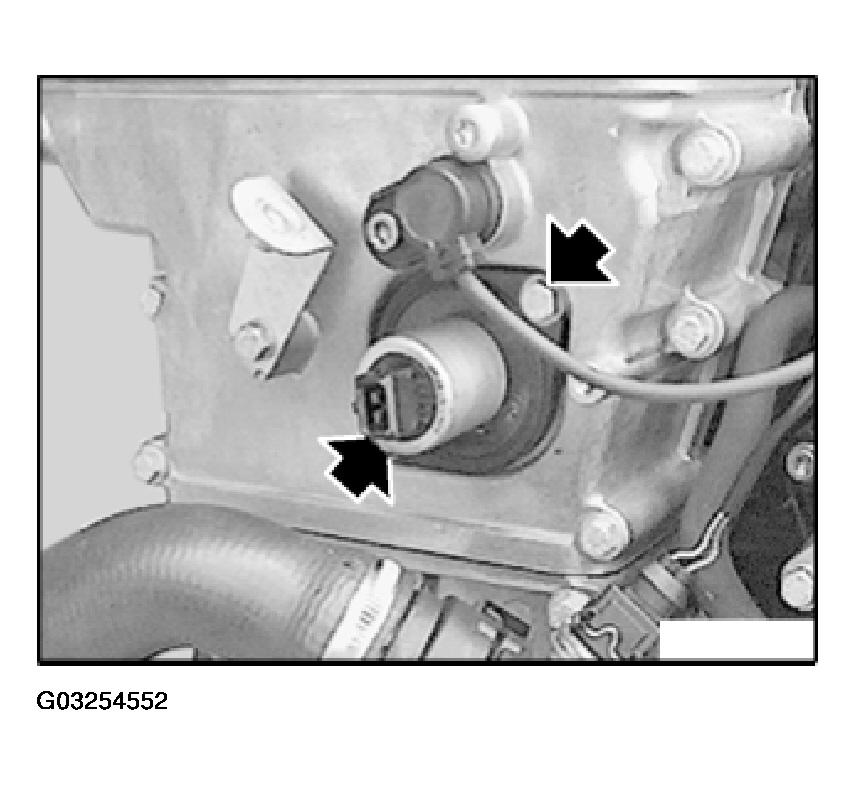

Release screws on sealing flange.

Fig 3: Removing Screws On Solenoid Valve Sealing Flange

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: The sealing flange seals the timing case cover via the solenoid valve.

If necessary, clean solenoid valve with a cloth.

Remove sealing flange (1).

Fig 4: Removing Solenoid Valve Sealing Flange

Courtesy of BMW OF NORTH AMERICA, INC.

If necessary, remove camshaft sensor or disconnect plug connection to cable duct.

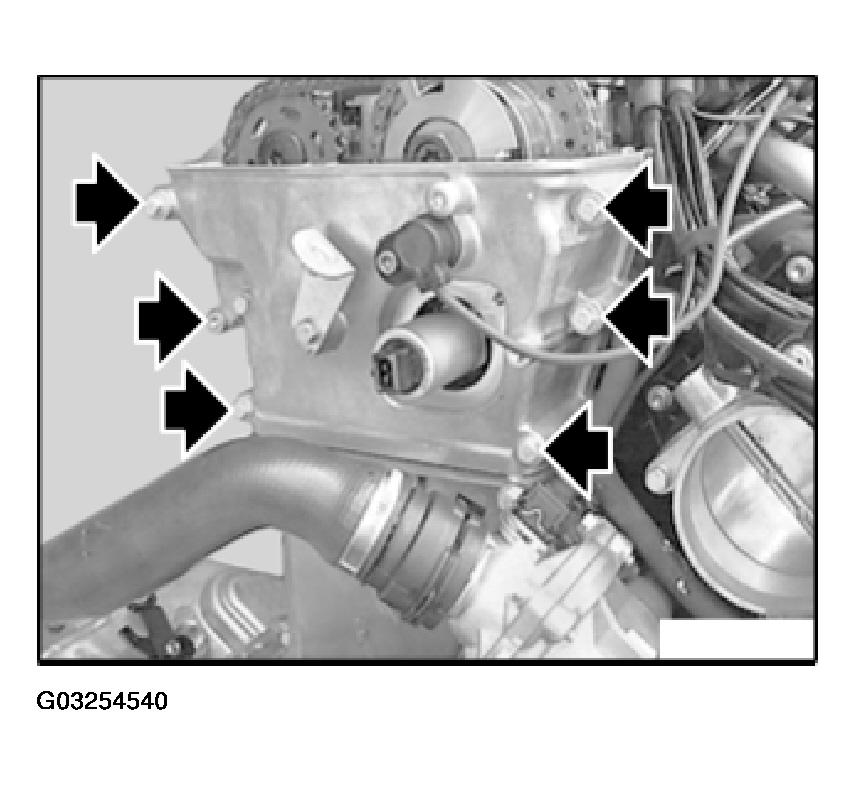

Release screws and remove timing case cover at top.

Fig 5: Removing Top Timing Case Cover

Courtesy of BMW OF NORTH AMERICA, INC.

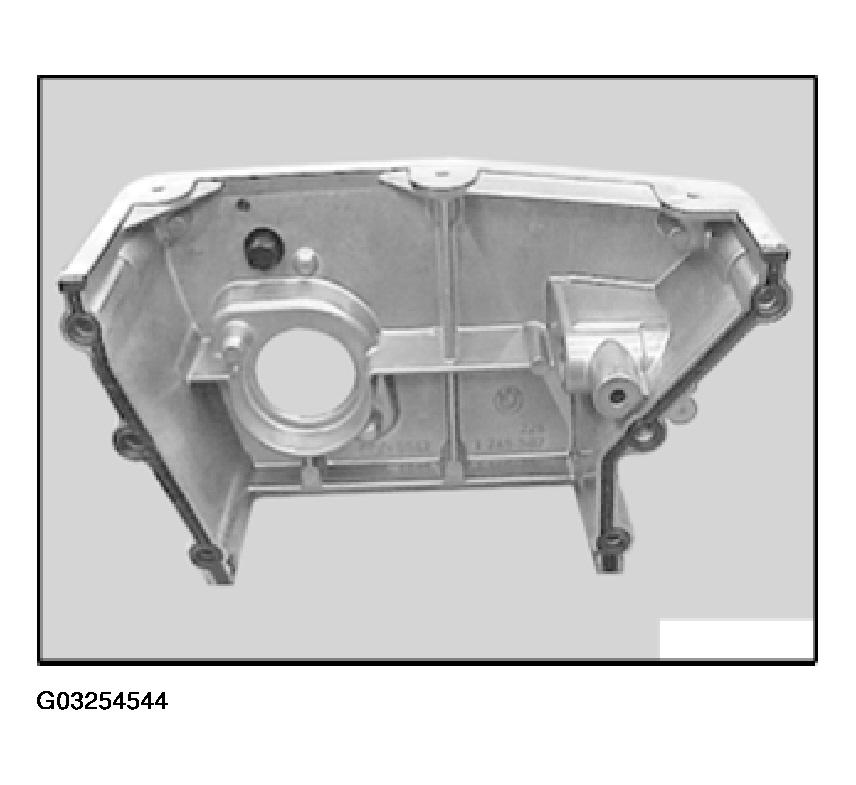

Remove rubber sealing strip.

Installation:

Clean groove for rubber profile seal and sealing surfaces of remains of seal.

Fig 6: Removing Top Timing Case Cover Rubber Sealing Strip

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

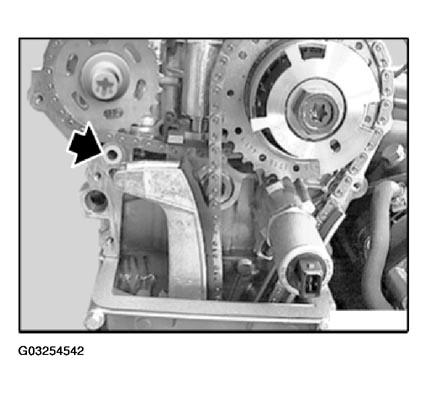

Replace sealing ring in cylinder head for oil supply of chain tensioner.

Fig 7: Replacing Chain Tensioner Oil Supply Sealing Ring

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Keep sealing faces clean and free of oil.

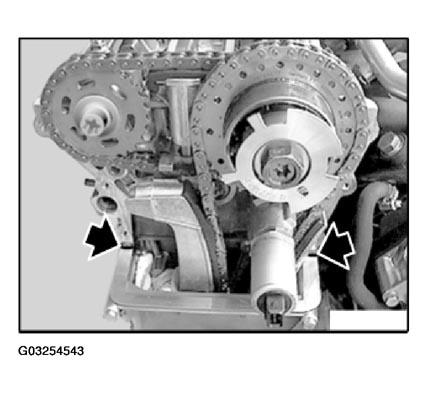

Apply coat of Drei Bond 1209 to joint between cylinder head and lower timing case cover.

Fig 8: Sealing Joint Between Cylinder Head And Lower Timing Case Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Seat new rubber seal in groove.

Fig 9: Seating New Rubber Seal In Groove

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Ensure that seals are correctly seated.

Press bow cover inwards and fit timing case cover.

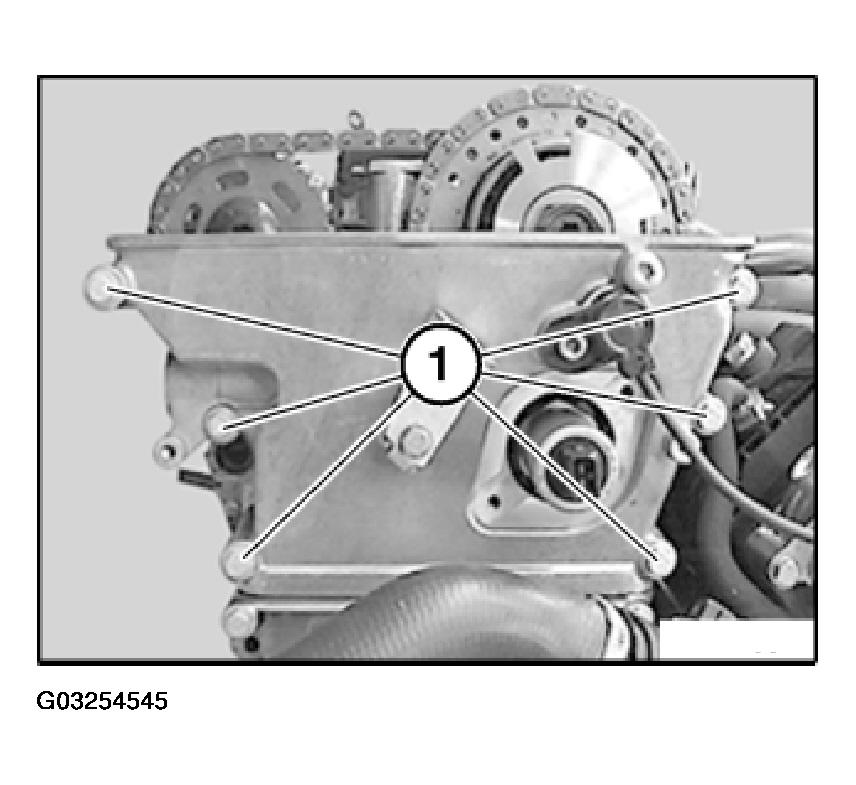

Install screws (1) and fit flush with cylinder head.

Fig 10: Installing Top Timing Case Cover Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Remove outer and inner gasket from cylinder head cover.

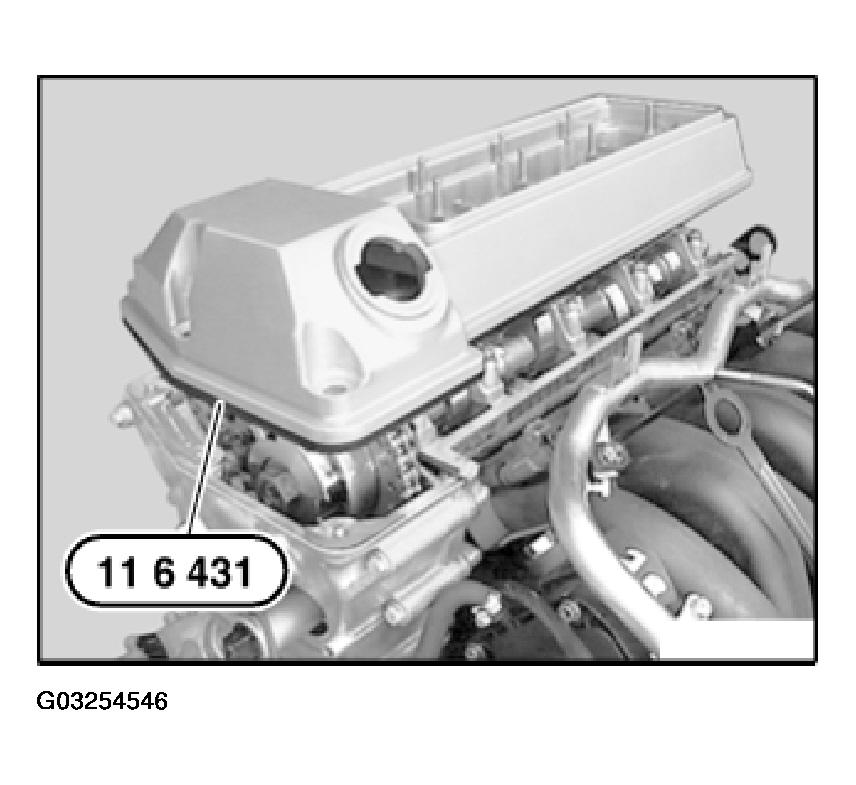

Insert special tool 11 6 431 from special tool kit 11 6 430 in groove of cover and fit cylinder head cover.

Fig 11: Fitting Cylinder Head Cover Using Special Tool 11 6 431

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

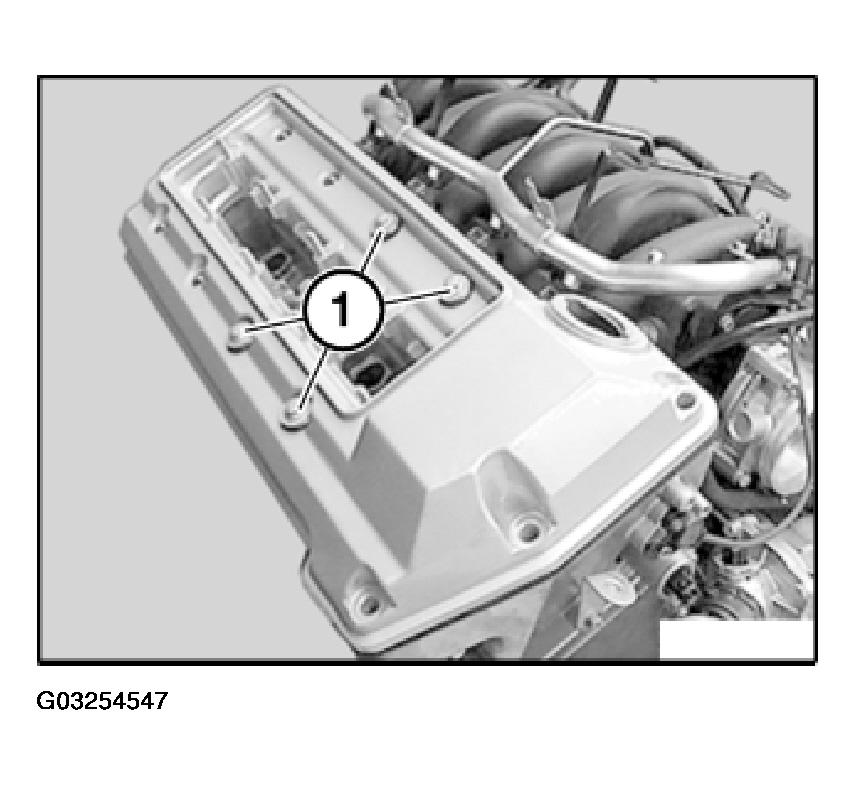

Install cover nuts (1) and tighten down uniformly in 1/2 turn steps.

Tightening Torque,

refer to 11 12 11AZ in ENGINE - TIGHTENING TORQUES - X5 4.6L .

Fig 12: Installing Cylinder Head Cover Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: The timing case cover is pressed down onto level of cylinder head by cylinder head cover.

Installation:

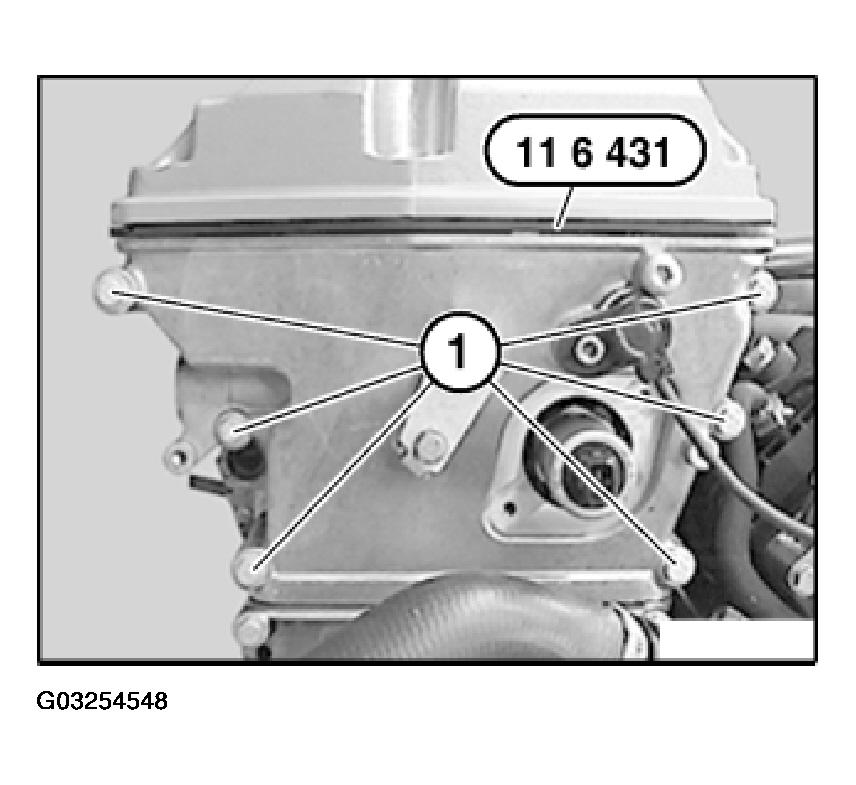

Tighten screws (1) on timing case cover in two passes.

Fig 13: Tightening Screws On Timing Case Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Remove cylinder head cover and remove special tool 11 6 431.

Fig 14: Removing Special Tool 11 6 431 From Cylinder Head Cover

Courtesy of BMW OF NORTH AMERICA, INC.

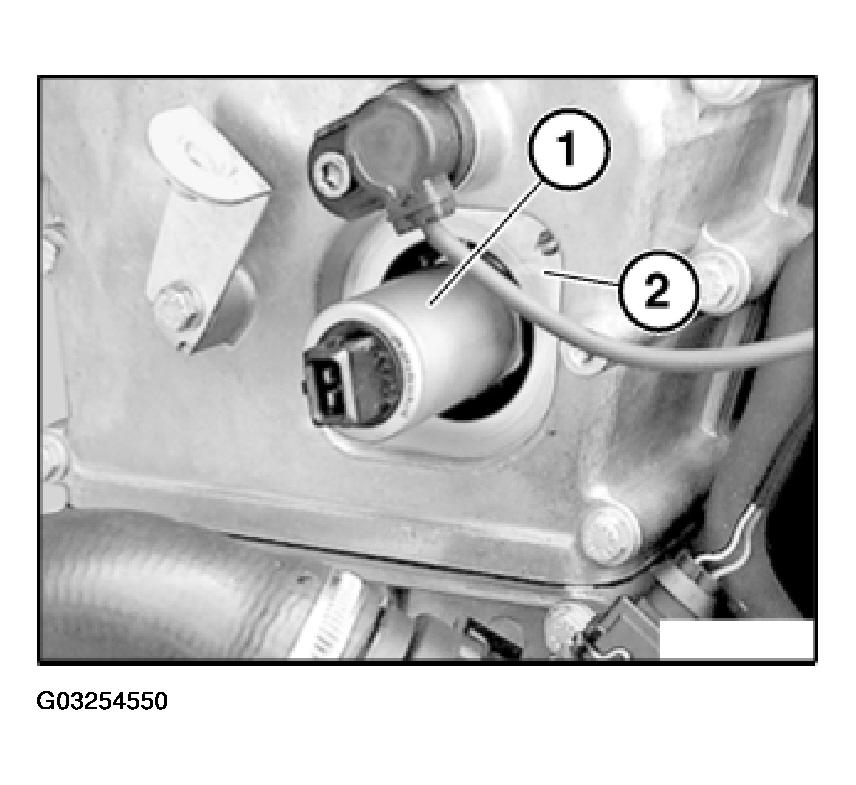

Clean solenoid valve (1) and sealing face (2).

Fig 15: Identifying Solenoid Valve And Sealing Face

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

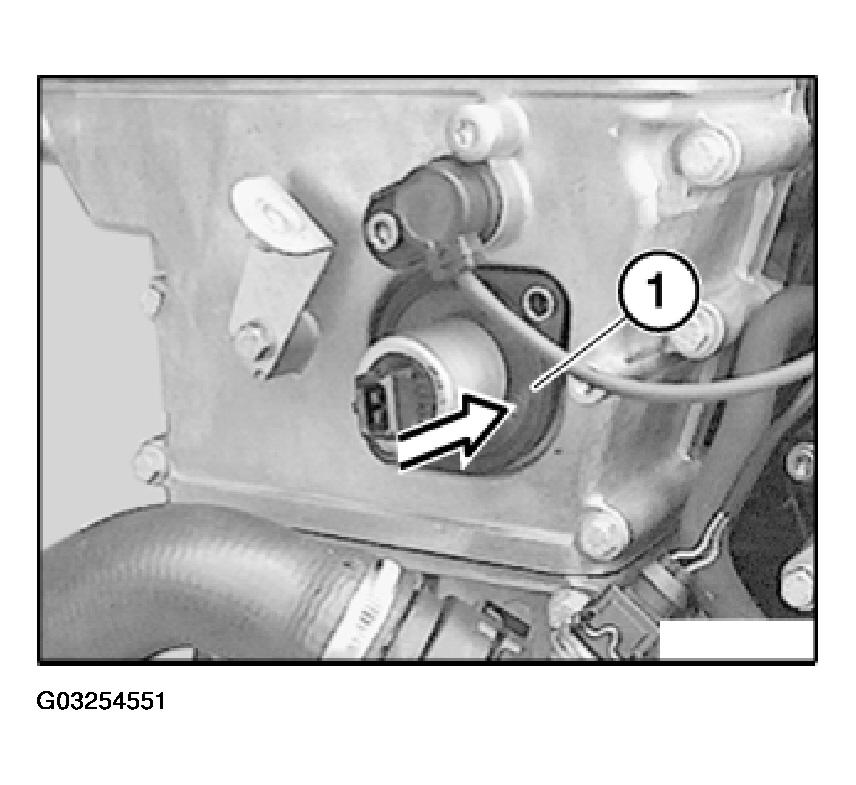

Check sealing flange (1), replace if necessary.

Apply a light coat of oil to inside of sealing flange (1) at sealing face to solenoid valve and carefully install.

Fig 16: Replacing Solenoid Valve Sealing Flange

Courtesy of BMW OF NORTH AMERICA, INC.

Insert screws on sealing flange and tighten down.

Fig 17: Installing Screws On Sealing Flange

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
