11 12 004 Removing and installing/sealing both cylinder head covers (M62)

WARNING: This page is about a different car, the 2003 BMW X5 and 2002 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Instructions for disconnecting and connecting battery,

refer to 12 00 ... INSTRUCTIONS FOR DISCONNECTING AND CONNECTING BATTERY .

Disconnect battery negative terminal.

Remove heater bulkhead,

refer to 51 71 080 REMOVING AND INSTALLING/REPLACING HEATER BULKHEAD .

Turn fasteners on acoustic cover 90° counterclockwise, remove acoustic cover.

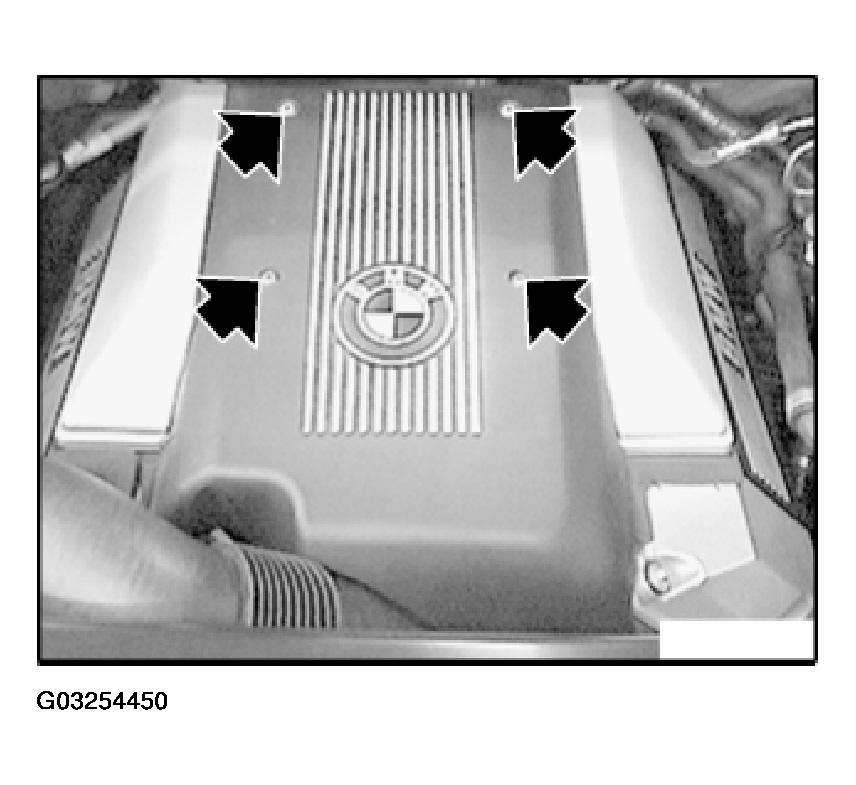

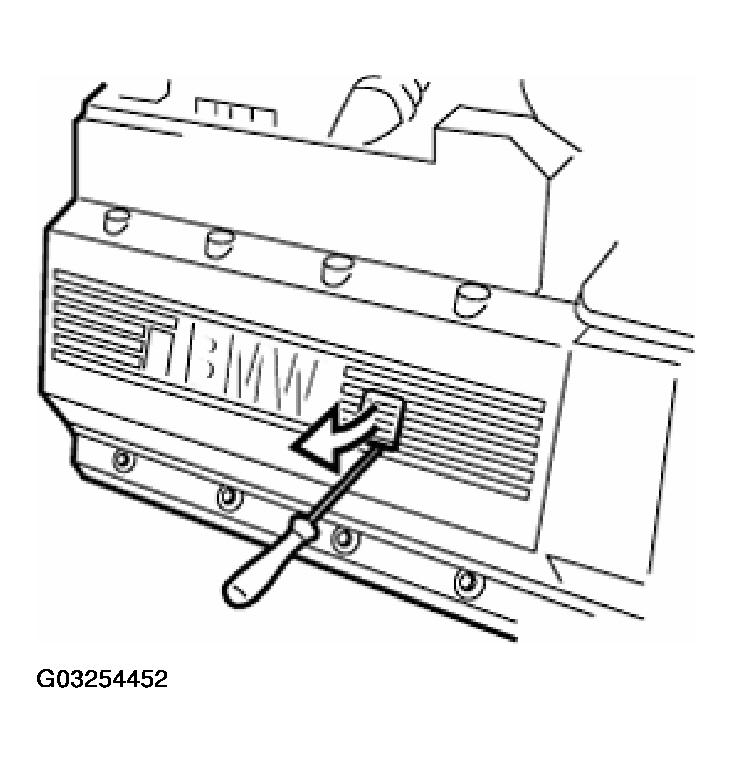

Fig 1: Removing Acoustic Cover
G03254450Courtesy of BMW OF NORTH AMERICA, INC.

Release bellows on throttle. Remove upper section of suction filter housing with mass air flow sensor. Remove lower section of suction filter housing.

Detach battery positive lead from support point on firewall. Feed out battery positive lead and lay to one side.

Cylinder head cover of cylinder bank 1 to 4:

Fig 2: Removing Cylinder Bank 1-4 Cylinder Head Cover
G03254452Courtesy of BMW OF NORTH AMERICA, INC.

Remove washer fluid reservoir.

Cylinder head cover of cylinder bank 5 to 8:

Unclip water hoses from holder on heater valve and press to one side.

NOTE: Water pipes remain connected.
NOTE: Vent line for front axle differential and positive lead is laid under cover of ignition coils.

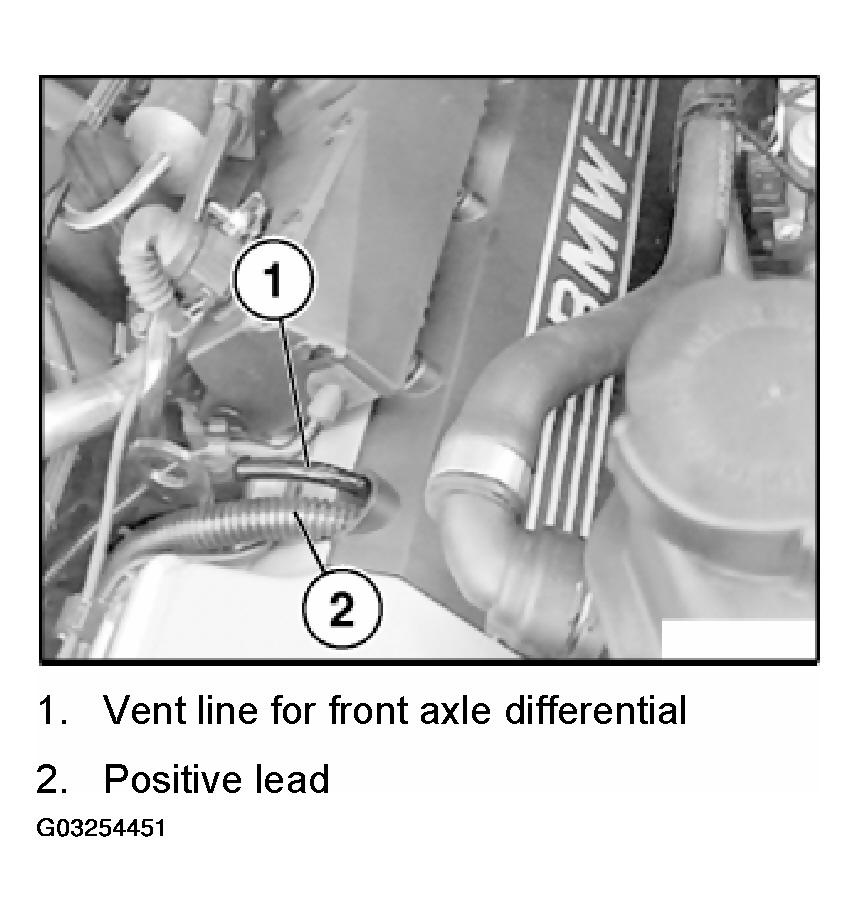

  1. Vent Line For Front Axle Differential
  2. Positive Lead
Fig 3: Identifying Vent Line And Positive Lead
G03254451Courtesy of BMW OF NORTH AMERICA, INC.

Remove ignition coils,

refer to 12 13 511 in IGNITION COIL .

Cylinder bank 5 to 8:

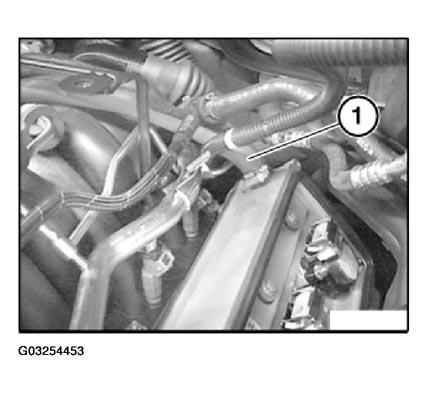

Detach vent hose (1) from cylinder head cover.

Fig 4: Detaching Vent Hose From Cylinder Head Cover
G03254453Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten left and right cable ducts and fold inwards.

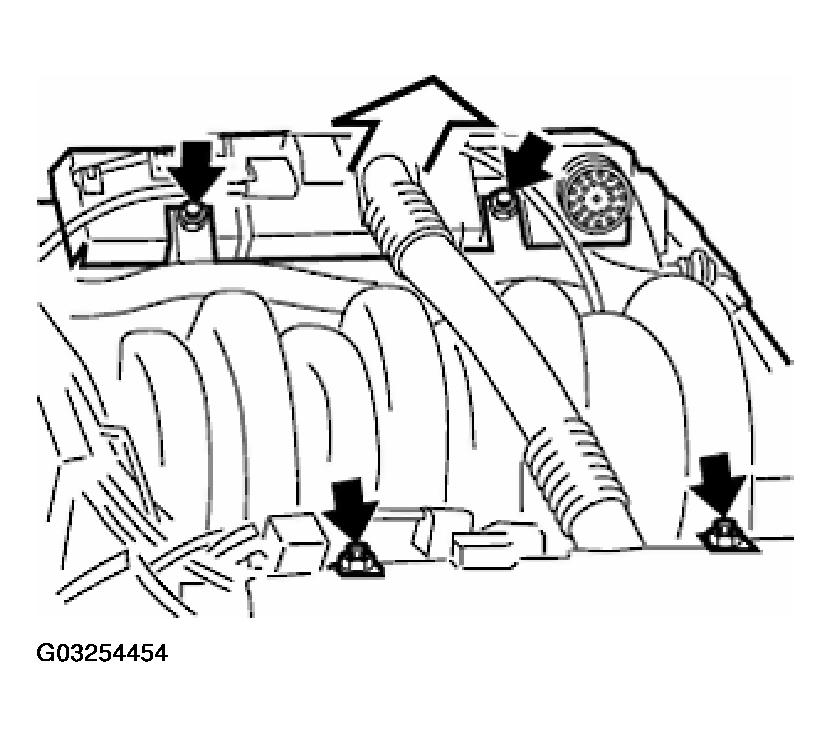

Fig 5: Unfastening Left And Right Cable Ducts
G03254454Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten retaining elements on left and right sides.

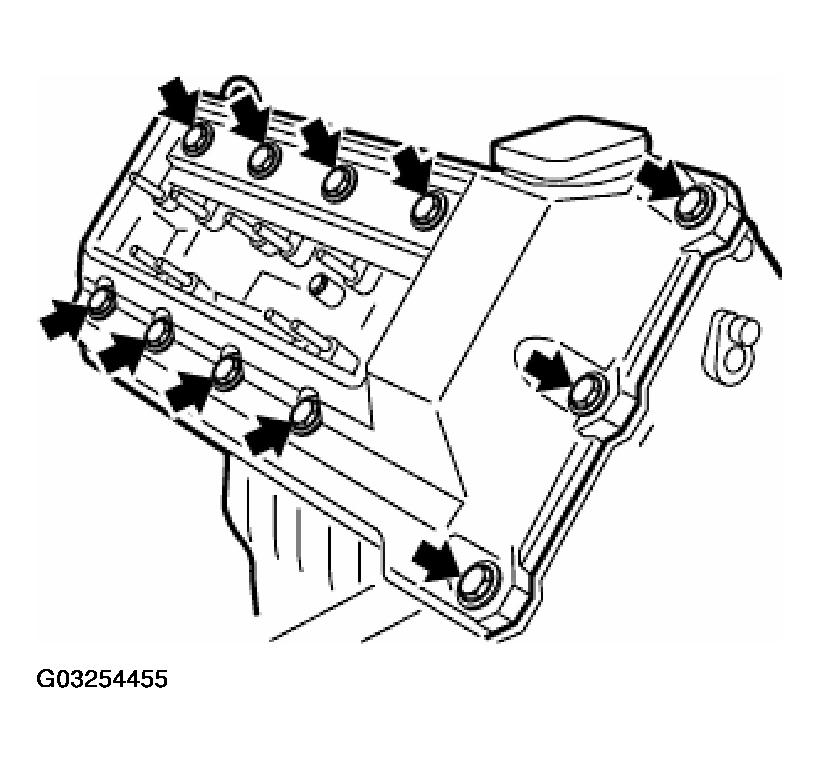

Fig 6: Unfastening Cylinder Head Cover Retainers
G03254455Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

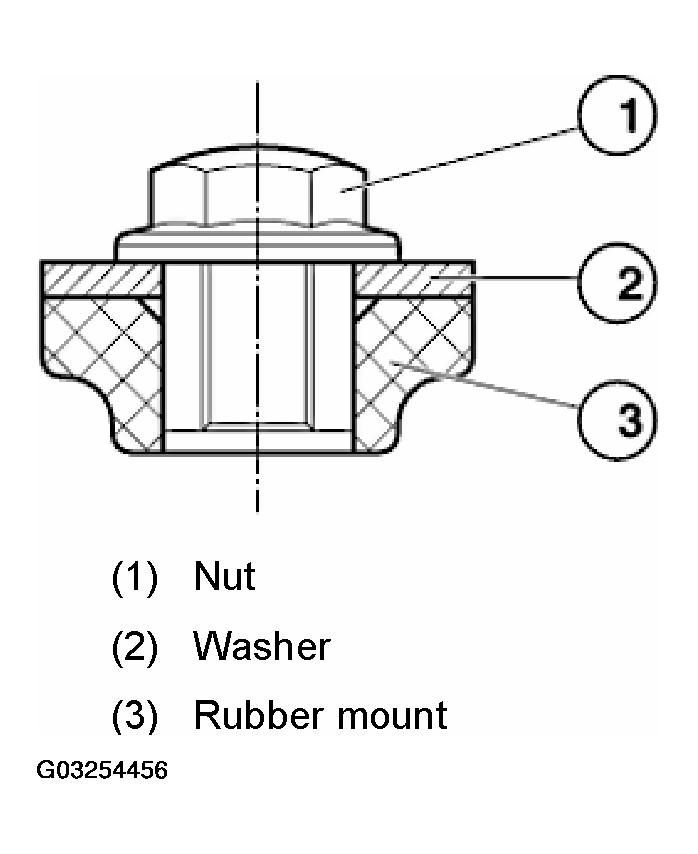

Fig 7: Layout Of Retaining Elements
G03254456Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Check seal, replace if necessary.

Coat outer and inner grooves and sealing face of cylinder head cover all round with anti-friction rubber coating, e.g. glycerine.

Press internal gasket into groove in cover without torsional stress, starting at the four corner radii.

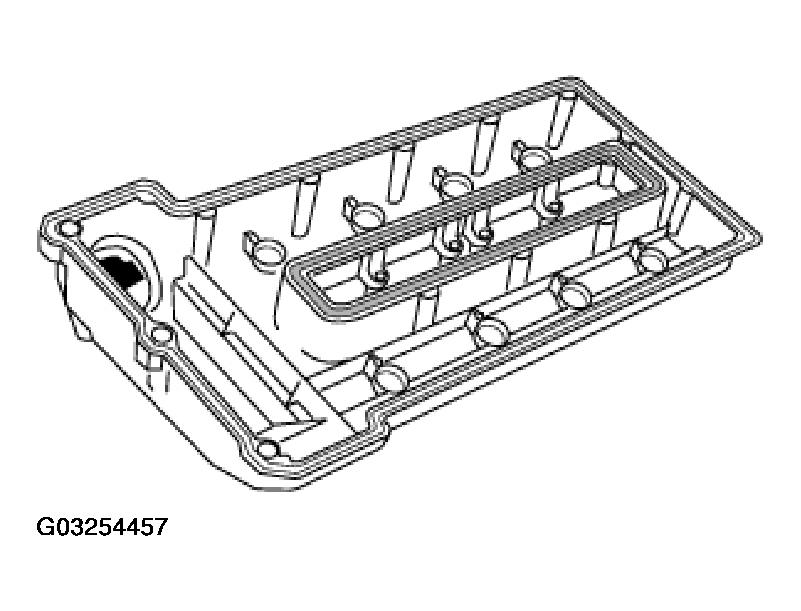

Fig 8: Installing Cylinder Head Cover Gasket
G03254457Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Align outer gasket loosely on groove in cover. Secure gasket in groove in cover, starting in the corner radii at the back (1) and locate without torsional stress in the groove.

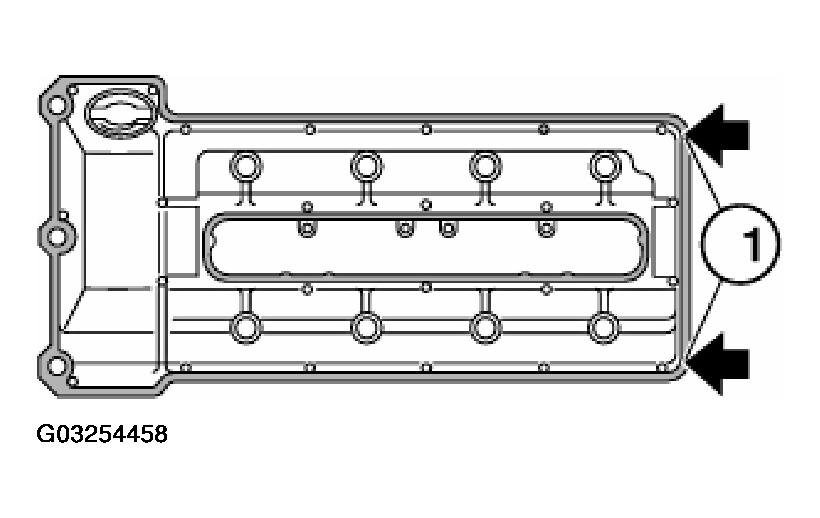

Fig 9: Aligning Cylinder Head Cover Gasket At Corner
G03254458Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Clean gasket residue from sealing surface.

Apply coat of Drei Bond 1209 to contact surfaces of joint.

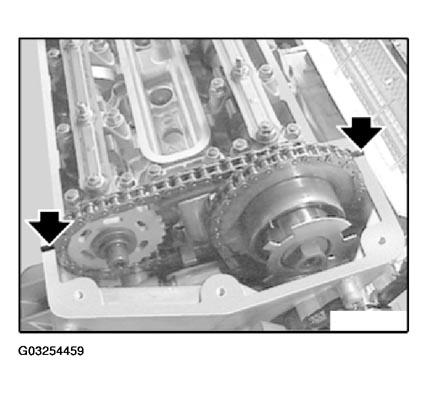

Fig 10: Applying Sealer To Contact Surfaces
G03254459Courtesy of BMW OF NORTH AMERICA, INC.
NOTE: Illustration with engine removed.

Installation:

Clean gasket residue from sealing surface.

Apply thin, uniform bead of Drei Bond 1209 to transmission area on half-moon sections.

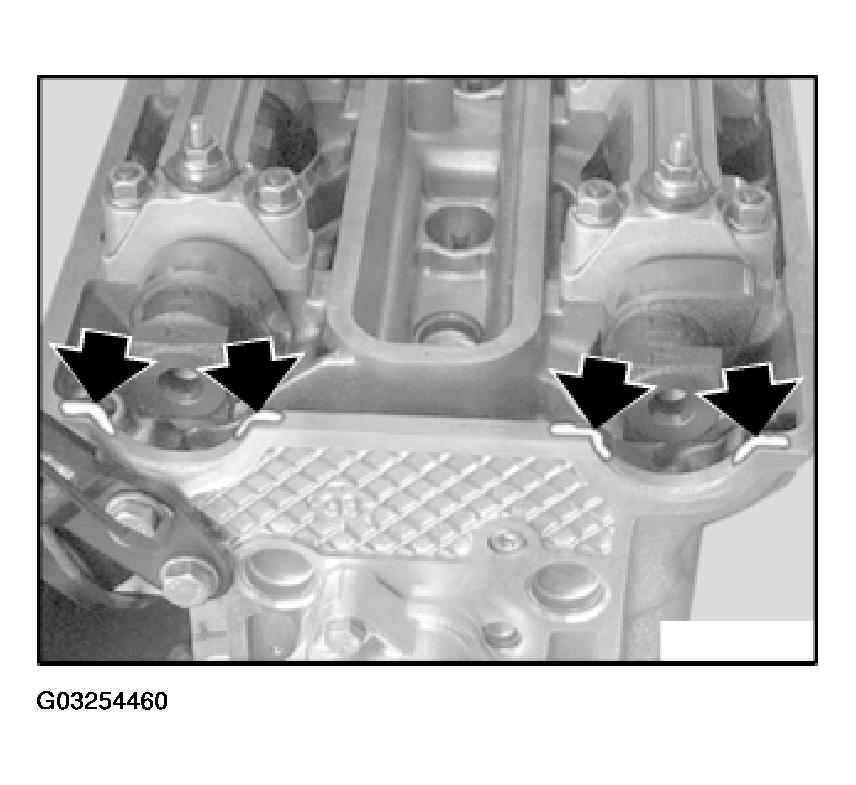

Fig 11: Applying Sealer To Half-Moon Sections
G03254460Courtesy of BMW OF NORTH AMERICA, INC.
NOTE: Illustration with engine removed.

Installation:

Check that side of gasket is correctly seated and check back of cylinder head.

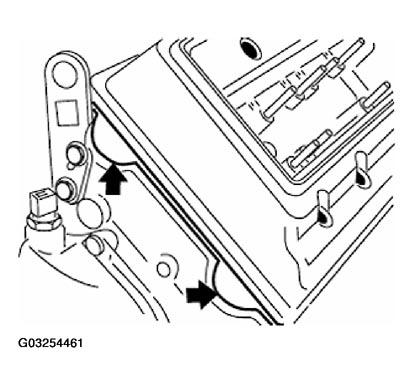

Fig 12: Checking Seating Of Cylinder Head Gasket
G03254461Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Screw two retaining elements to the locating points,

without preload at this stage, and align the cover. Install all other retaining elements and tighten crosswise from inside to outside.

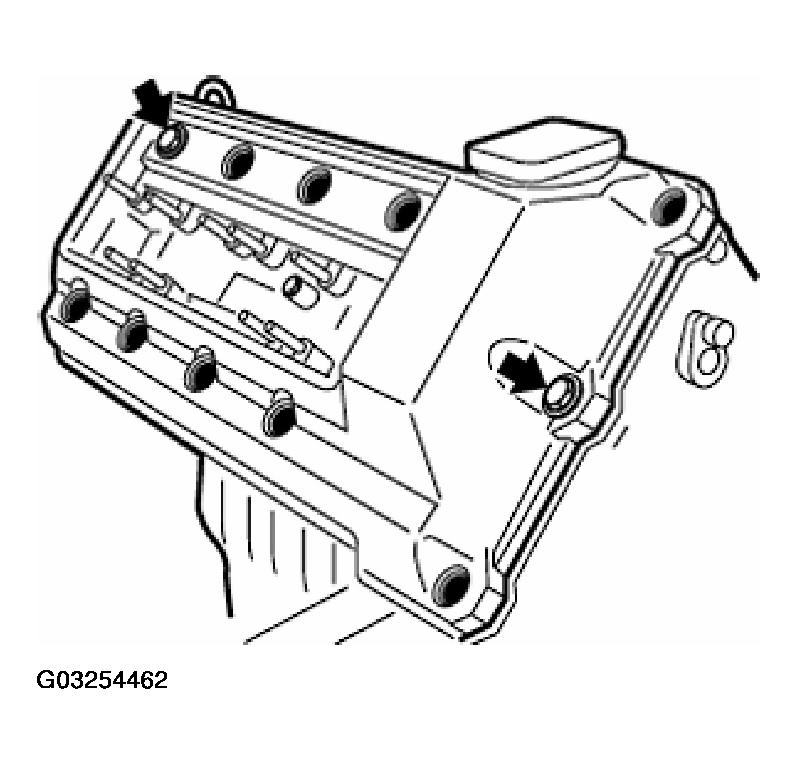

Fig 13: Installing Retaining Elements
G03254462Courtesy of BMW OF NORTH AMERICA, INC.
