11 14 080 Removing and installing timing case cover, top left (M62 VANOS from 9/98)

WARNING: This page is about a different car, the 2003 BMW X5 and 2002 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Remove left cylinder head cover. These tasks are described in 11 12 004 REMOVING AND INSTALLING/SEALING BOTH CYLINDER HEAD COVERS (M62)

Remove fan clutch with impeller,

refer to 11 52 020 REMOVING AND INSTALLING OR REPLACING FAN COUPLING (M62) .

Remove solenoid valve of camshaft adjustment unit, left,

refer to 11 36 585 REMOVING AND INSTALLING/REPLACING SOLENOID VALVE OF CAMSHAFT ADJUSTMENT UNIT, LEFT (M62 VANOS FROM 9/98) .

Disconnect plug connection to check valve.

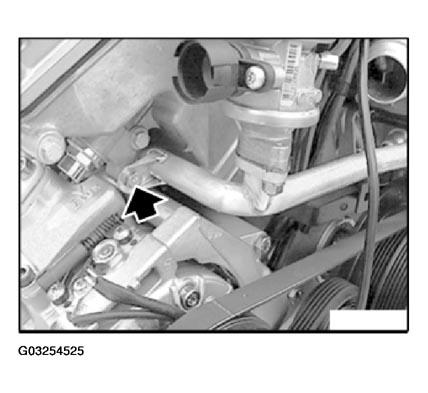

Detach secondary-air line on timing case cover, top left and right.

Fig 1: Removing Secondary-Air Line

Courtesy of BMW OF NORTH AMERICA, INC.

Detach secondary-air line on bracket and remove.

Installation:

Clean sealing faces on cylinder head, replace sealing ring on secondary-air line and apply a thin coat of grease as anti-friction agent.

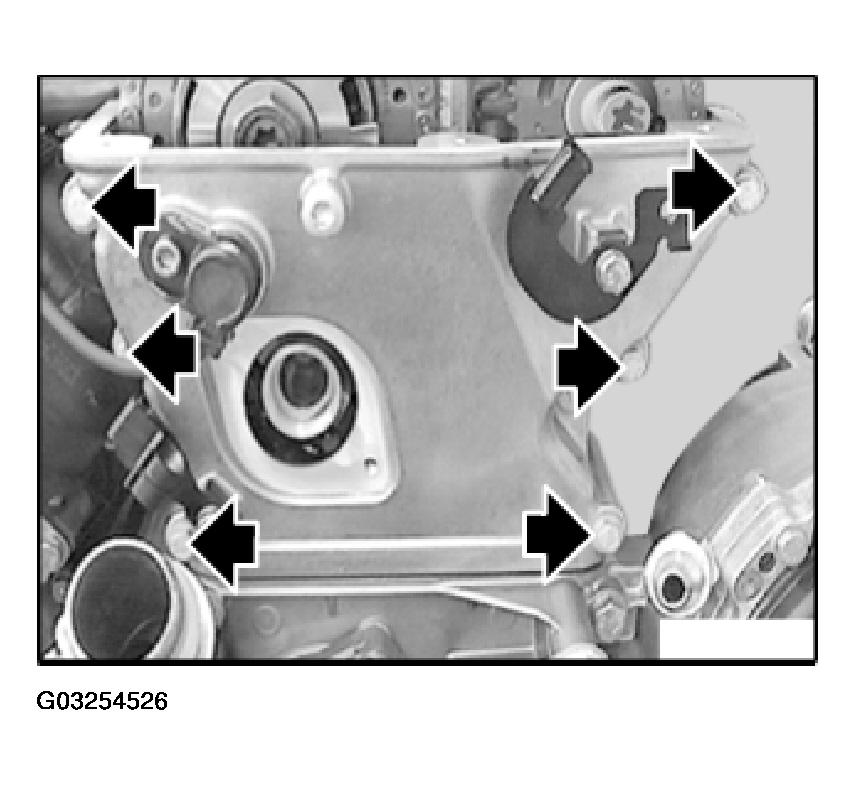

Unfasten timing case cover.

Fig 2: Removing Top Timing Case Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Remove rubber sealing strip.

Installation: Clean groove for rubber profile seal and sealing surfaces of remains of seal.

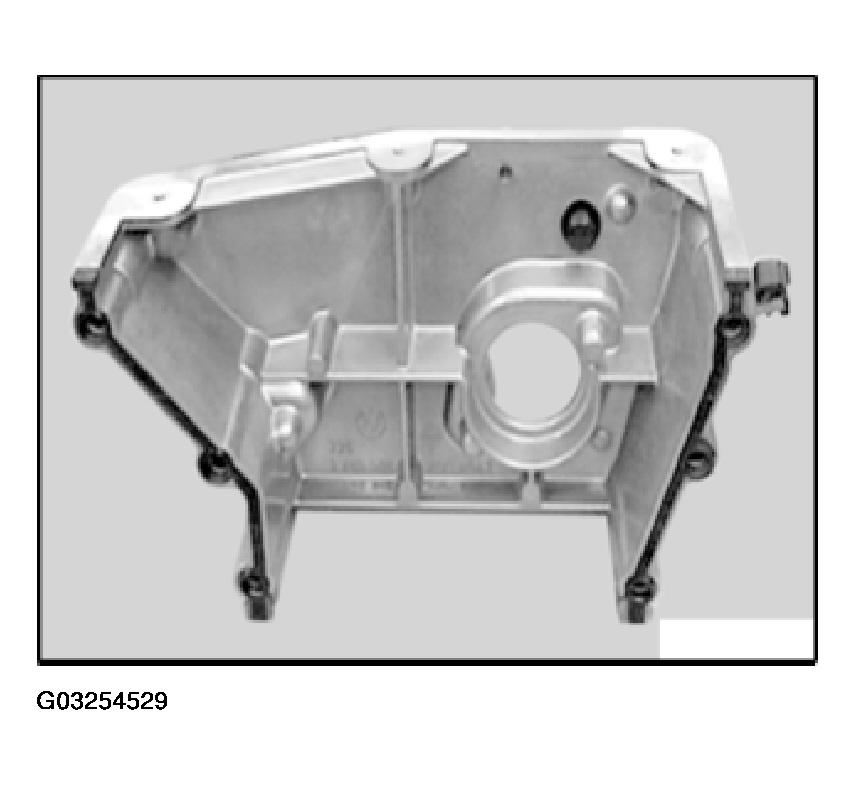

Fig 3: Installing Rubber Sealing Strip

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Keep sealing faces clean and free of oil.

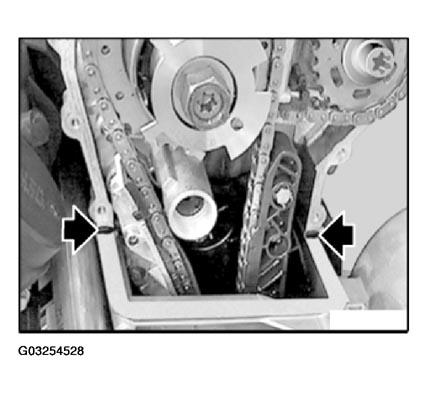

Apply coat of Drei Bond 1209 to joint between cylinder head and lower timing case cover.

Fig 4: Sealing Joint Between Cylinder Head And Lower Timing Case Cover

Courtesy of BMW OF NORTH AMERICA, INC.

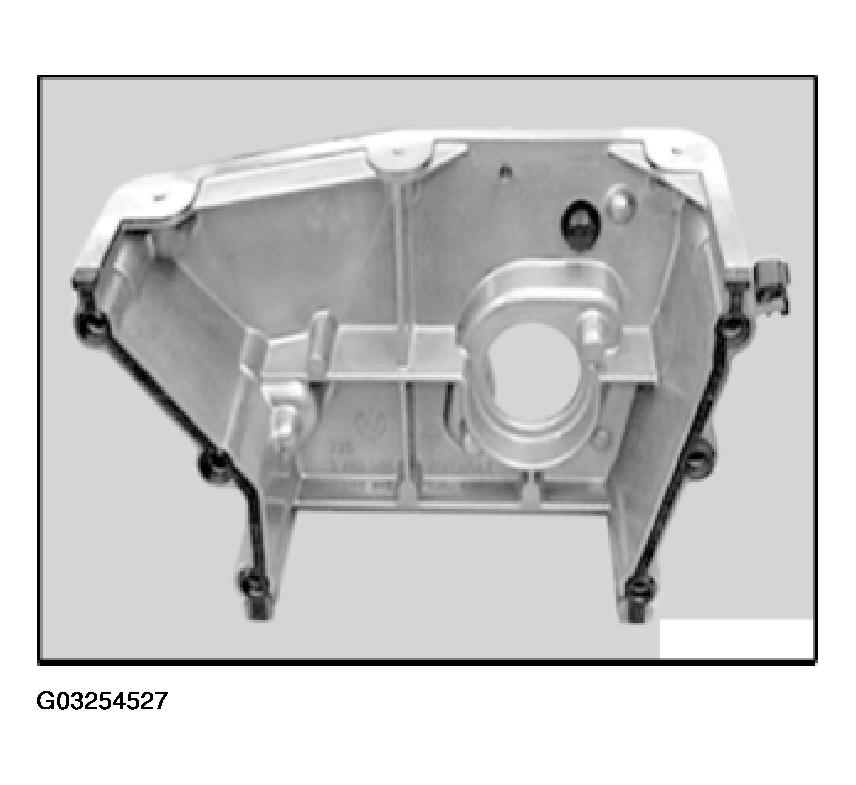

Seat new rubber seal in groove.

Fig 5: Seating New Rubber Seal In Groove

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

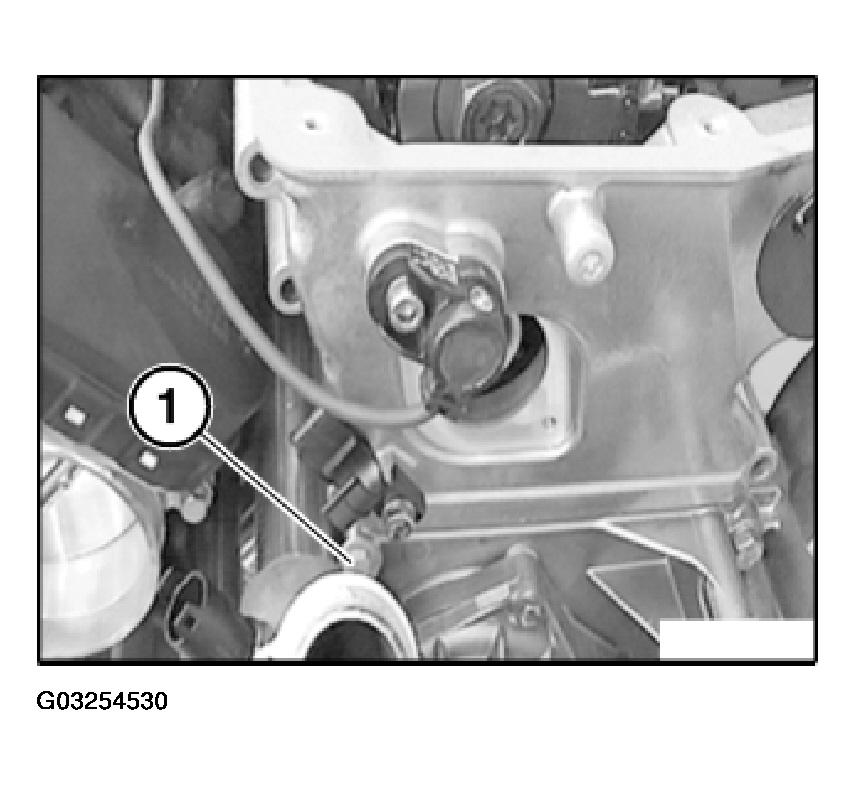

Ensure that seal is correctly seated, then fit timing case cover with inserted screw (1).

Fig 6: Inserting Screw To Timing Case Cover

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: It is not possible to insert screw (1) after fitting the timing case cover.

Installation:

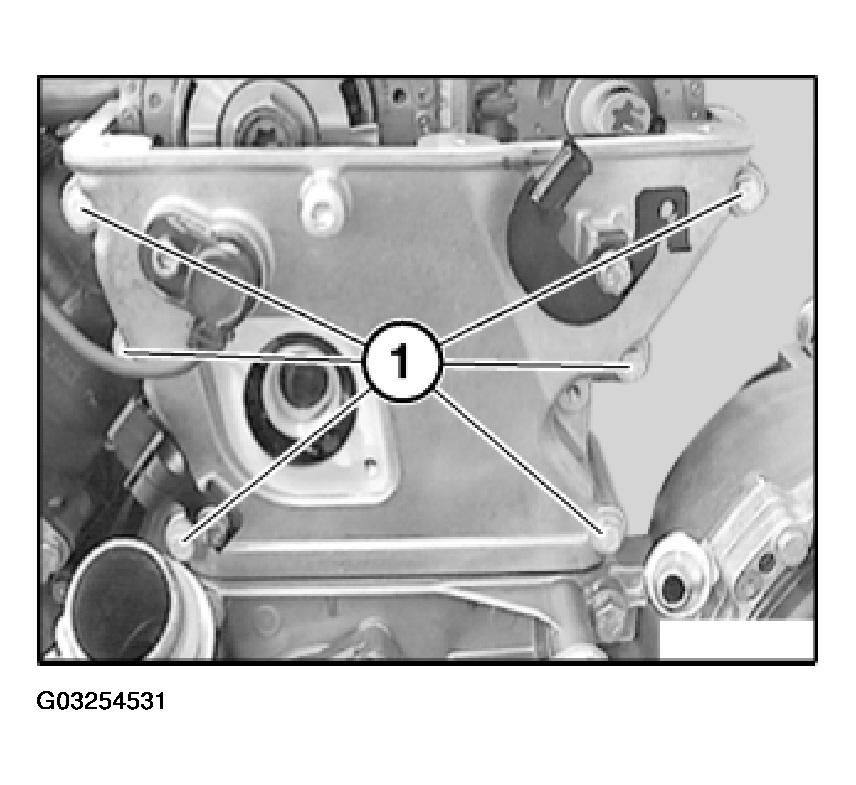

Install screws (1) and fit flush with cylinder head.

Fig 7: Installing Top Timing Case Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Remove outer and inner gasket from cylinder head cover.

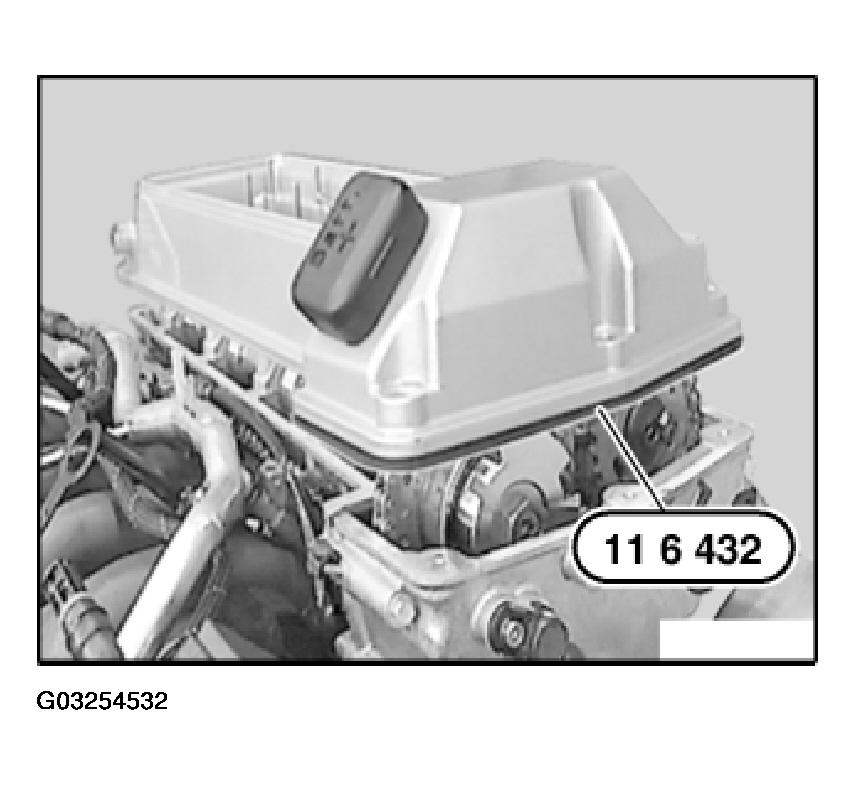

Insert special tool 11 6 432 from special tool kit 11 6 430 in groove of cover and fit cylinder head cover.

Fig 8: Fitting Cylinder Head Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

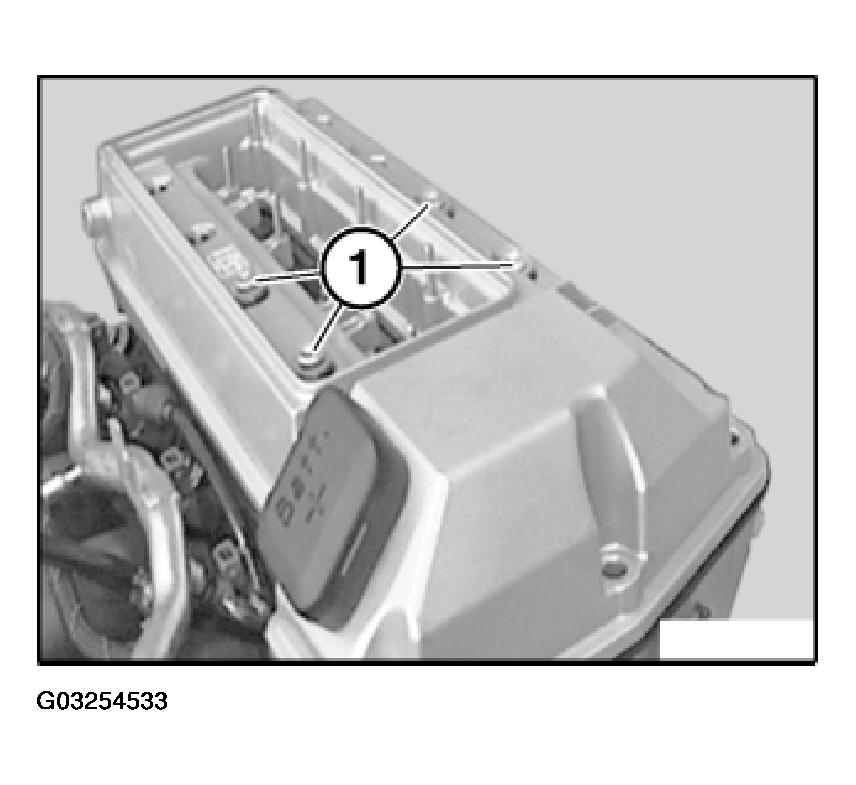

Install cover nuts (1) and tighten down uniformly in 1/2 turn steps.

Tightening Torque,

refer to 11 12 11 AZ in ENGINE - TIGHTENING TORQUES - X5 4.6L .

NOTE: The timing case cover is pressed down onto level of cylinder head by cylinder head cover.

Fig 9: Installing Cylinder Head Cover Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Tighten screws (1) on timing case cover in two passes.

Fig 10: Tightening Screws On Timing Case Cover

Courtesy of BMW OF NORTH AMERICA, INC.

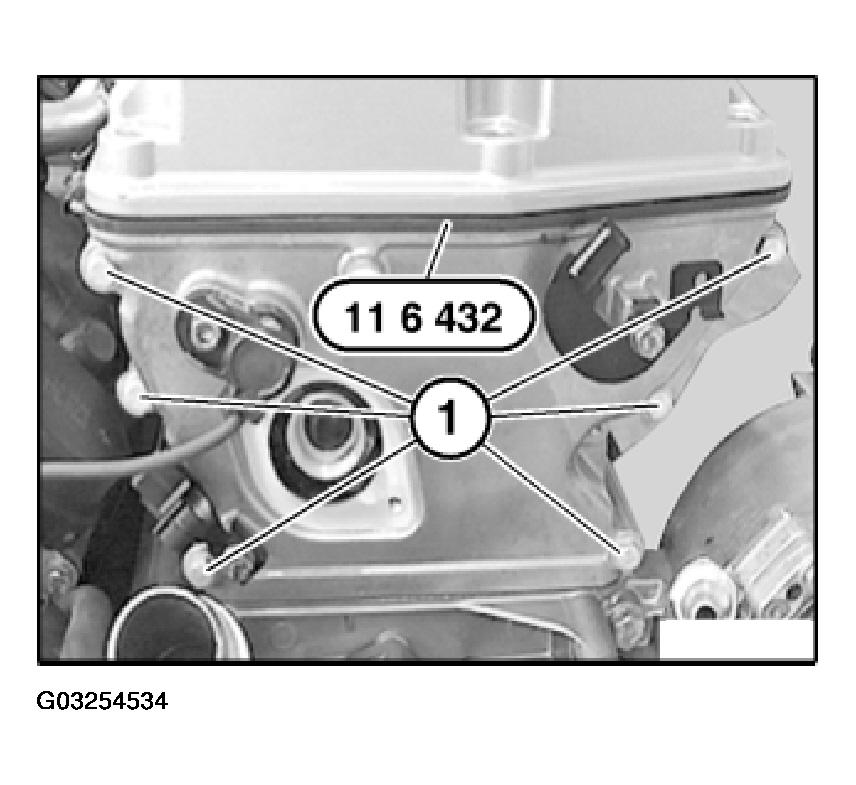

Remove cylinder head cover and remove special tool 11 6 432.

Fig 11: Removing Special Tool 11 6 432 From Cylinder Head Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Install solenoid valve of camshaft adjustment unit, left,

refer to 11 36 585 REMOVING AND INSTALLING/REPLACING SOLENOID VALVE OF CAMSHAFT ADJUSTMENT UNIT, LEFT (M62 VANOS FROM 9/98) .

Assemble engine.
