41 62 014 Adjusting Tailgate: Notes

Read relevant service information under BODY .

Observe 41 00... BODY GAP DIMENSIONS .

The tailgate must be provided with all attachment parts for correct adjustment.

Version with automatic tailgate activation:

Deactivate automatic tailgate activation by DISCONNECTING PLUG CONNECTIONS on control unit.

Necessary preliminary tasks:

• Remove TRIM PANEL FOR REAR LID

Slacken nuts (1) and (2) until such stage that the tailgate can still be moved.

Adjust tailgate laterally and longitudinally.

Tightening torque: see 1AZ in 41 62 REAR LID

When the tailgate is closed, the striker must not touch or scrape against the tailgate lock. If necessary, remove striker.

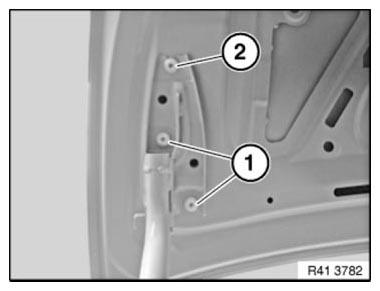

Fig 1: Identifying Trim Panel Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Adjusting height of tailgate in relation to side panel:

• REMOVE TENSION SPRING
• Remove sealing cap from opening (1).

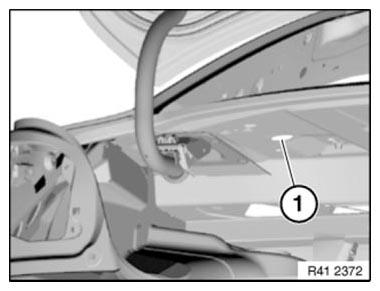

Fig 2: Identifying Sealing Cap Opening

Courtesy of BMW OF NORTH AMERICA, INC.

Slacken nut (1) with a suitable tool (SW13) until hinge can be moved.

Adjust height of tailgate.

Tightening torque: see 3AZ in 41 62 REAR LID

Adjust TAILGATE CATCH .

Adjust STOP PAD .

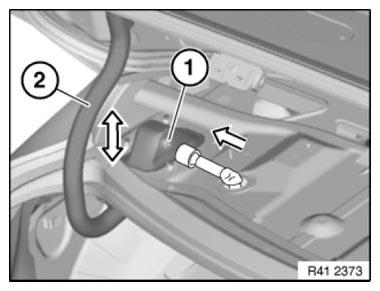

Fig 3: Adjusting Height Of Tailgate

Courtesy of BMW OF NORTH AMERICA, INC.
