41 62 000 Removing And Installing Rear Lid: Notes

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, 2012 BMW 760Li, and 2011 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Read relevant service information under BODY .

Necessary preliminary tasks:

Remove PANEL FOR REAR LID .
Disconnect all cable plug connections and pull wiring harness out of rear lid.

Carry over the work step shown symmetrically to the other side of the vehicle.

Release screws (1).

Slacken screw (2) and remove rear lid with a second person.

Tightening torque: see 1AZ in 41 62 REAR LID

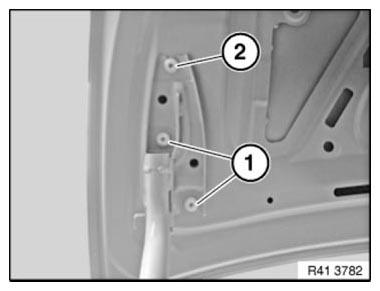

Fig 1: Identifying Rear Lid Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Install rear lid at screw locations on hinge.

If necessary, ADJUST TRUNK LID .
