65 12 053 Removing and installing/renewing central bass speaker-passenger side- (under front seat)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove FRONT PASSENGER SEAT .
Remove PANEL FOR DOOR PILLAR .

The following operations are described for the left side. The procedure for the right side is identical.

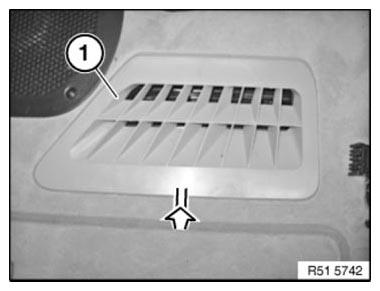

Pull trim (1) in direction of arrow towards rear and lift out.

Fig 1: Pulling Trim

G08474080

Courtesy of BMW OF NORTH AMERICA, INC.

Release plastic nut (1).

Feed out air duct (2).

Release screws (4).

Remove central bass speaker cover (3).

Fold back floor trims.

Fig 2: Identifying Central Bass Speaker Cover, Air Duct, Screws And Plastic Nut

G06886401

Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew nuts (1).

Unfasten plug connection (2) and disconnect.

Feed out central bass carrier (3) in direction of arrow.

Fig 3: Feeding Out Central Bass Carrier

G06886402

Courtesy of BMW OF NORTH AMERICA, INC.
