65 13 090 Removing and installing/replacing speaker (mid-range speaker, door at rear)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove REAR DOOR TRIM PANEL .

Disconnect plug connection (1).

Unscrew nuts (2).

Remove speaker (3).

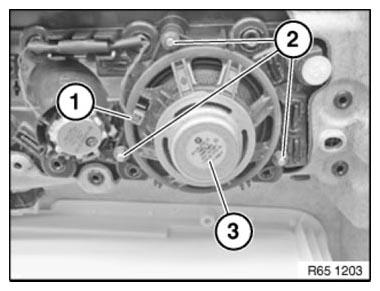

Fig 1: Identifying Plug Connection, Nuts And Speaker

Courtesy of BMW OF NORTH AMERICA, INC.
